Technological Advances in Geomembrane Liners Set New Benchmark for Durability

Introduction

Geomembrane liners have long been a critical component in environmental protection, water containment, and industrial applications. Their primary function is to act as impermeable barriers, preventing the leakage of liquids and gases in landfills, mining operations, water reservoirs, and agricultural projects. Over the past decade, significant technological advancements have revolutionized geomembrane materials, manufacturing processes, and installation techniques, setting new benchmarks for durability, performance, and sustainability.

This paper explores the latest innovations in geomembrane technology, focusing on material enhancements, manufacturing improvements, installation methodologies, and long-term performance validation. By understanding these advancements, stakeholders in environmental engineering, construction, and waste management can make informed decisions to optimize containment solutions.

1. Material Innovations in Geomembrane Liners

1.1 High-Density Polyethylene (HDPE) Enhancements

High-Density Polyethylene (HDPE) remains the most widely used geomembrane material due to its chemical resistance, flexibility, and cost-effectiveness. Recent advancements have further improved its durability:

- Antioxidant Stabilizers: New formulations incorporate advanced antioxidants that significantly extend the lifespan of HDPE liners by reducing oxidative degradation.

- UV Resistance: Enhanced UV stabilizers prevent brittleness and cracking when exposed to prolonged sunlight, making HDPE more suitable for exposed applications.

- Flexibility at Low Temperatures: Modified polymer blends ensure that HDPE retains flexibility in sub-zero conditions, reducing the risk of stress cracking.

1.2 Linear Low-Density Polyethylene (LLDPE) and Very Low-Density Polyethylene (VLDPE)

LLDPE and VLDPE geomembranes offer superior elongation properties compared to HDPE, making them ideal for applications requiring high flexibility, such as floating covers and landfill caps. Recent improvements include:

- Multi-Layer Coextrusion: Combining different polyethylene layers enhances puncture resistance while maintaining flexibility.

- Enhanced Seam Strength: Advanced welding techniques ensure stronger seams, reducing the risk of leaks in critical containment applications.

1.3 Reinforced Geomembranes

Reinforced geomembranes incorporate fabric or mesh layers to improve tensile strength and puncture resistance. Innovations include:

- Polymer-Coated Reinforcements: Using high-strength polyester or fiberglass grids coated with polyethylene or PVC enhances tear resistance without sacrificing flexibility.

- Hybrid Composites: Combining geotextiles with geomembranes creates a dual-function material that provides both filtration and containment.

1.4 Thermoplastic Polyolefin (TPO) and Ethylene Propylene Diene Monomer (EPDM) Alternatives

While HDPE dominates the market, TPO and EPDM geomembranes are gaining traction in specialized applications:

- TPO Liners: Known for excellent heat resistance and flexibility, TPO is increasingly used in exposed applications like floating solar covers.

- EPDM Liners: These rubber-based membranes offer superior elasticity, making them ideal for applications requiring extreme elongation, such as decorative ponds.

2. Manufacturing and Quality Control Breakthroughs

2.1 Advanced Extrusion and Calendering Techniques

Modern manufacturing processes ensure uniform thickness, reduced defects, and improved mechanical properties:

- Multi-Layer Coextrusion: Produces geomembranes with customized properties, such as a UV-resistant top layer and a chemically resistant bottom layer.

- High-Precision Calendering: Ensures consistent thickness and smooth surfaces, minimizing weak spots.

2.2 Non-Destructive Testing (NDT) and Quality Assurance

To guarantee long-term performance, manufacturers now employ rigorous testing protocols:

- Ultrasonic Testing: Detects hidden flaws in seams and material consistency.

- Spark Testing: Identifies pinholes and micro-defects before installation.

- Large-Scale Tensile Testing: Validates the liner’s strength under real-world stress conditions.

2.3 Sustainable Manufacturing Practices

Environmental concerns have driven innovations in eco-friendly production:

- Recycled Polymer Blends: Some manufacturers now incorporate post-industrial recycled materials without compromising performance.

- Reduced Carbon Footprint: Energy-efficient extrusion processes and renewable energy use in production facilities lower the environmental impact.

3. Installation and Seaming Innovations

3.1 Advanced Welding Techniques

Seam integrity is critical for geomembrane performance. Recent welding advancements include:

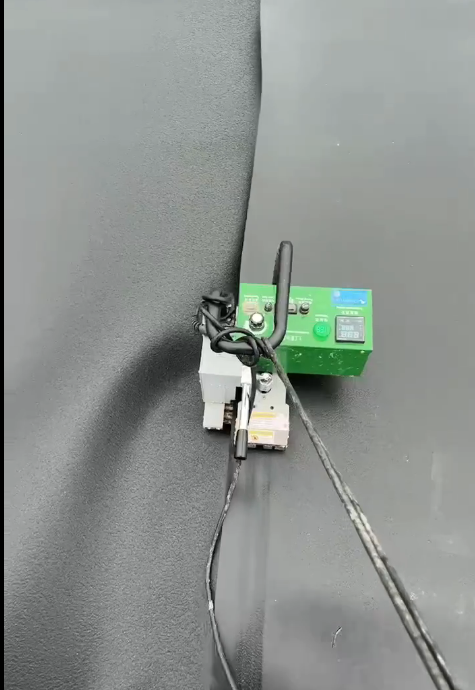

- Dual Hot Wedge Welding: Creates stronger, more consistent seams by melting both surfaces simultaneously.

- Extrusion Fillet Welding: Ideal for repairing damaged liners or connecting different materials.

- Automated Welding Robots: Improve precision and reduce human error in large-scale installations.

3.2 Leak Detection Systems

New technologies enable real-time monitoring of liner integrity:

- Electrical Leak Location (ELL) Surveys: Detects breaches by measuring electrical conductivity across the liner.

- Geosynthetic Clay Liners (GCL) Integration: Combines geomembranes with bentonite clay layers that self-seal upon contact with water.

3.3 Prefabrication and Modular Installation

To minimize field seams and installation time, prefabricated geomembrane panels are gaining popularity:

- Factory-Seamed Panels: Large sections are welded off-site, reducing on-site labor and potential defects.

- Foldable Geomembranes: Designed for easy transport and deployment in remote locations.

4. Long-Term Performance and Durability Validation

4.1 Accelerated Aging Tests

Laboratory simulations predict geomembrane lifespan under extreme conditions:

- High-Temperature Oxidation Testing: Evaluates resistance to thermal degradation.

- Stress Crack Resistance (SCR) Testing: Measures long-term flexibility under mechanical stress.

4.2 Field Performance Studies

Case studies from landfills, mining sites, and water reservoirs confirm the effectiveness of modern geomembranes:

- 50+ Year Lifespan Projections: Advanced HDPE formulations show minimal degradation after decades of use.

- Chemical Resistance Validation: Real-world exposure tests confirm resistance to aggressive leachates and industrial chemicals.

4.3 Lifecycle Cost Analysis

While advanced geomembranes may have higher upfront costs, their extended lifespan and reduced maintenance needs offer long-term savings.

5. Future Trends and Emerging Technologies

5.1 Smart Geomembranes with Embedded Sensors

Next-generation liners may include:

- Strain Sensors: Detect deformation and stress in real time.

- Temperature and Moisture Sensors: Monitor environmental conditions to predict potential failures.

5.2 Self-Healing Geomembranes

Research is underway on materials that autonomously repair minor punctures using microcapsules of sealant or thermoplastic reactions.

5.3 Bio-Based and Biodegradable Alternatives

Sustainable materials, such as polylactic acid (PLA) blends, are being explored for temporary containment applications.

Conclusion

The geomembrane industry has made remarkable strides in material science, manufacturing precision, and installation methodologies, setting new standards for durability and environmental protection. From advanced polymer formulations to smart monitoring systems, these innovations ensure that geomembrane liners can meet the growing demands of modern infrastructure projects while minimizing ecological impact.

As research continues, future developments in self-healing materials, embedded sensors, and sustainable production will further enhance geomembrane performance, solidifying their role as a cornerstone of containment solutions worldwide. Stakeholders across industries must stay informed about these advancements to leverage the best available technologies for their projects.

By adopting these cutting-edge geomembrane solutions, engineers and project managers can achieve superior containment performance, regulatory compliance, and long-term cost efficiency—ultimately contributing to a more sustainable and resilient built environment.
