Landfill Liner Geomembrane: Comprehensive Product Introduction

In particular, solutions such as HDPE Landfill Liner Geomembrane, Waterproof Landfill Liner Geomembrane, and Flexible Landfill Liner Geomembrane are highlighted as essential technologies in modern landfill engineering.

 Introduction
Landfills are engineered facilities designed for the safe disposal of municipal solid waste, industrial by-products, and hazardous materials. One of the most critical components of modern landfill design is the geomembrane liner system, which acts as a barrier to prevent contaminants from leaching into the surrounding soil and groundwater. Among the wide range of geosynthetic materials available, landfill liner geomembranes, typically manufactured from high-density polyethylene (HDPE), linear low-density polyethylene (LLDPE), or polyvinyl chloride (PVC), are the most widely used due to their durability, impermeability, and cost-effectiveness. This document provides a comprehensive and detailed introduction to landfill liner geomembranes, their properties, manufacturing processes, applications, installation methods, testing standards, and global market outlook.

 1. Understanding Geomembrane Technology

Geomembranes are continuous polymeric sheets that function as impermeable barriers. They are designed to control fluid migration in various civil, geotechnical, and environmental engineering applications. The term “landfill liner geomembrane” specifically refers to geomembranes used in landfill base liners, capping systems, and leachate collection ponds.

 2. Material Composition
The performance of landfill liner geomembranes is determined by their raw material composition:
- High-Density Polyethylene (HDPE): The most common choice for landfill liners due to its high tensile strength, excellent chemical resistance, and long service life.
- Linear Low-Density Polyethylene (LLDPE): Offers superior flexibility, making it ideal for applications requiring conformance to irregular subgrade surfaces.
- Polyvinyl Chloride (PVC): Less commonly used in landfills today due to plasticizer migration and shorter lifespan, but still found in temporary or low-risk containment systems.
- Reinforced Composites: Sometimes geomembranes are laminated with geotextiles or scrims to enhance puncture resistance and dimensional stability.

 3. Manufacturing Process
Geomembrane liners are manufactured using advanced polymer extrusion and calendaring technologies. The process typically includes:
1. Resin Selection: Virgin polyethylene resins with carbon black additives for UV resistance are chosen.
2. Extrusion: The molten polymer is extruded into flat sheets or blown films.
3. Calendering: Some geomembranes are pressed into thin sheets by heated rollers for uniformity.
4. Texturing: Surface texturing is applied to improve frictional properties when installed on slopes.
5. Quality Control: Each batch is tested for tensile strength, elongation, thickness uniformity, and permeability.

 4. Key Properties of Landfill Liner Geomembranes

- Low Permeability: Ensures minimal leakage of leachate into groundwater.
- High Chemical Resistance: Withstands acids, alkalis, and organic solvents present in landfill leachate.
- Durability: Long-term service life exceeding 30 years under proper conditions.
- UV Resistance: Carbon black and stabilizers allow resistance to solar degradation.
- Flexibility: Especially in LLDPE liners, which conform to uneven ground surfaces.
- Mechanical Strength: High tensile strength and puncture resistance make them suitable for heavy waste loads.

 5. Applications in Landfill Engineering
Landfill liner geomembranes play multiple roles across different stages of landfill construction and closure. Their applications include:

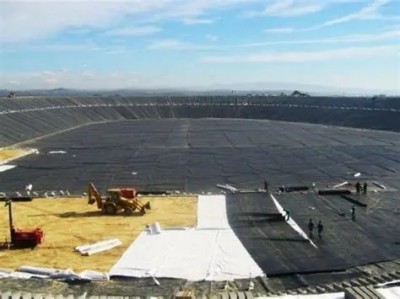

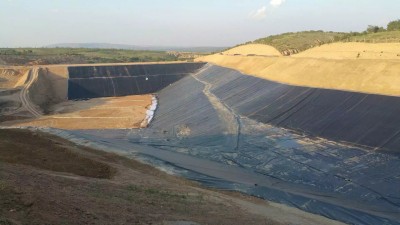

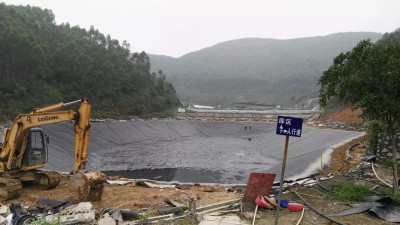

- Base Liner Systems: Installed at the bottom of landfills to prevent leachate migration. They often work in composite liner systems with compacted clay layers.

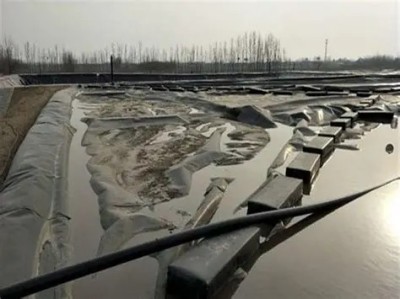

- Leachate Collection Ponds: Used as containment barriers for ponds designed to collect and treat landfill leachate before discharge or recycling.
- Caps and Covers: Applied on top of closed landfill cells to reduce infiltration of rainwater and minimize gas emissions.
- Gas Collection Systems: Integrated into cover designs to enhance gas recovery while maintaining containment integrity.
- Secondary Containment: Used beneath hazardous waste storage areas or tanks to prevent accidental release of chemicals into the soil.

 6. Design Considerations

Designing a landfill liner system requires careful consideration of environmental and operational factors:
1. Site Conditions: Soil type, groundwater level, climate, and seismic activity influence liner selection.
2. Waste Characteristics: Municipal, hazardous, and industrial waste generate different leachate compositions requiring different chemical resistances.
3. Regulatory Requirements: Compliance with international standards such as the US EPA Subtitle D regulations or European Union Landfill Directive is mandatory.
4. Hydraulic Performance: Designers must ensure that liners exhibit negligible leakage rates, typically quantified as less than 1 x 10^-14 m/s permeability.

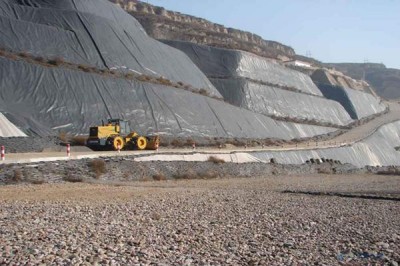

5. Slope Stability: Textured liners are often required on side slopes to maintain shear strength between geomembrane and adjacent layers.

 7. Installation Procedures
The performance of geomembranes is strongly tied to proper installation practices. Key steps include:
- Subgrade Preparation: The ground beneath the liner must be smooth, compacted, and free of sharp objects.

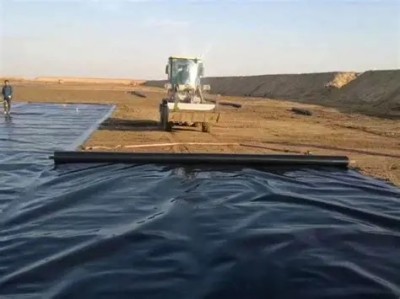

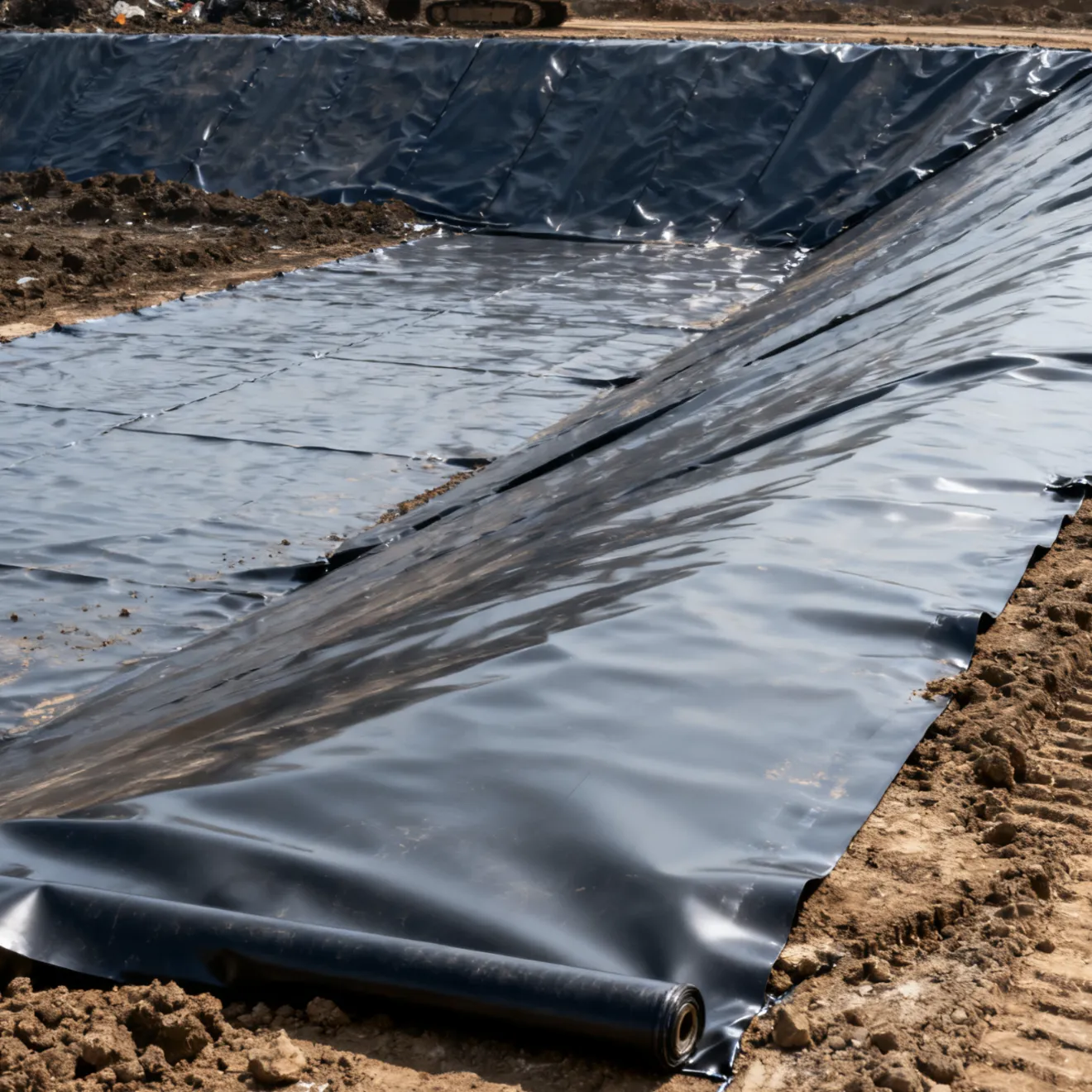

- Deployment: Liners are rolled out using specialized equipment to prevent wrinkles and stretching.
- Seaming: Adjacent geomembrane sheets are thermally welded, using either hot wedge or extrusion welding.
- Testing of Seams: Non-destructive tests such as air channel testing or vacuum box testing verify seam integrity.
- Anchorage: Liners are secured at perimeter anchor trenches to prevent slippage.

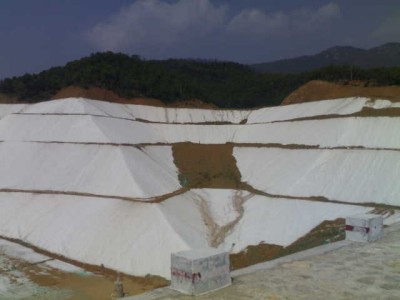

- Protective Covering: Sand, geotextiles, or drainage layers are installed on top to protect against punctures.

 8. Quality Assurance and Testing

Quality assurance ensures that landfill liners meet design specifications:
- Factory Quality Control: Tensile strength, elongation, tear resistance, and thickness uniformity are tested.
- Field Quality Control: During installation, inspectors perform destructive seam peel and shear tests.
- Non-Destructive Testing: Spark testing, vacuum testing, and air pressure testing of seams are standard procedures.
- Certification: Liners may require certification under ISO 9001, GRI-GM13 standards, or ASTM specifications.
- Long-Term Monitoring: Some facilities integrate leak detection systems beneath liners for early warning of defects.

 9. Case Studies in Landfill Projects

Example 1: Municipal Landfill in the United States
A landfill in California used a 2.0 mm HDPE geomembrane combined with compacted clay. After 20 years of operation, groundwater monitoring confirmed negligible leakage, proving long-term durability.

 Example 2: Hazardous Waste Landfill in Europe
A hazardous waste landfill in Germany adopted a triple-liner system with HDPE geomembranes, geosynthetic clay liners (GCLs), and leak detection layers. This approach minimized environmental risks and met strict EU standards.

 Example 3: Developing Country Landfill
In Southeast Asia, a municipal landfill incorporated LLDPE liners to handle uneven subgrade conditions caused by soft soils. The flexibility of LLDPE allowed conformance without compromising performance.

 10. Advantages of Landfill Liner Geomembranes
The adoption of geomembranes in landfill engineering provides numerous advantages over traditional clay liners:
1. Superior Impermeability: Geomembranes exhibit hydraulic conductivity values up to 1,000 times lower than compacted clay.
2. Consistency: Manufactured in controlled environments, geomembranes provide uniform quality and predictable performance.
3. Chemical Resistance: They resist attack from acids, bases, salts, and organic compounds typically found in landfill leachate.
4. Space Efficiency: Unlike thick clay layers, geomembranes are only a few millimeters thick, maximizing landfill volume.
5. Ease of Installation: Although requiring skilled technicians, deployment is generally faster and more consistent than compacting clay layers.
6. Compatibility with Composite Liners: Geomembranes are often combined with clay or geosynthetic clay liners for enhanced performance.

 11. Limitations and Challenges

Despite their benefits, geomembranes face several limitations:
- Puncture Risk: Sharp objects or improper handling can damage the liner.
- Stress Cracking: Prolonged exposure to high stresses or poor welding can lead to cracks.
- Temperature Sensitivity: Extreme heat or cold during installation can reduce seaming quality.
- UV Exposure: Extended exposure to sunlight during storage or delayed covering can degrade polymer properties.
- Installation Costs: Although materials are cost-effective, skilled installation crews and quality control testing add expenses.

 12. Environmental Impact and Sustainability
Landfill liner geomembranes significantly reduce environmental risks:
- Groundwater Protection: Preventing leachate migration safeguards aquifers and surface waters.
- Gas Emission Control: Integrated cover liners reduce methane escape, contributing to greenhouse gas mitigation.
- Sustainable Materials: Some manufacturers now incorporate recycled resins, reducing environmental footprints.
- Life-Cycle Benefits: By extending landfill service life and reducing remediation costs, geomembranes contribute to long-term sustainability.

 13. Innovations in Geomembrane Technology
Advancements in polymer science have improved liner performance:
- Multilayer Co-Extrusion: Produces liners with different functional layers, such as enhanced chemical resistance or improved bonding surfaces.
- Conductive Geomembranes: Allow electrical leak location surveys, providing precise identification of defects.
- Reinforced Liners: Integration with geotextiles increases mechanical strength against puncture and stress cracking.
- Smart Liners: Emerging technologies incorporate sensors to monitor strain, temperature, and chemical exposure in real-time.

 14. Cost Considerations

The cost of geomembrane systems includes materials, installation, and maintenance:
1. Material Cost: HDPE liners typically cost between $1.5 and $3 per square meter depending on thickness and additives.
2. Installation Cost: Specialized welding and testing crews may double the overall expense.
3. Maintenance Cost: Routine inspections and repairs are minimal compared to potential environmental remediation expenses if liners fail.
4. Economic Benefit: By preventing costly contamination, geomembranes deliver long-term financial savings.

 15. Standards and Regulations
Landfill liner geomembranes are regulated by international and national guidelines:
- United States: EPA Subtitle D requires composite liners with geomembranes and clay for municipal solid waste landfills.
- European Union: The Landfill Directive mandates double-liner systems for hazardous waste disposal.
- China: National standards (GB/T 17643) regulate geomembrane performance in environmental containment projects.
- International Standards: ASTM and ISO testing standards specify minimum mechanical and chemical resistance properties.

 16. Maintenance and Inspection
Long-term performance depends on proactive inspection and maintenance:
- Visual Inspections: Regular checks for cracks, tears, or erosion of protective cover.
- Leak Detection: Electrical resistivity surveys detect breaches in liners.
- Repair Techniques: Hot air welding or patching is used to repair punctures or seam defects.
- Documentation: Maintenance logs and photographic evidence ensure regulatory compliance.

 17. Comparison with Alternative Liner Systems
- Clay Liners: While cost-effective and naturally occurring, clay liners require significant thickness and are prone to desiccation cracking.
- Geosynthetic Clay Liners (GCLs): Provide self-healing properties due to bentonite swelling but may suffer from chemical incompatibility.
- Composite Systems: Combining geomembranes with clay or GCLs provides redundancy and enhances reliability.

 18. Global Market Overview

The geomembrane market has grown rapidly due to increasing environmental regulations and awareness:
- Market Size: The global geomembrane market was valued at over USD 2 billion and is expected to grow at a CAGR exceeding 5%.
- Key Regions: North America and Europe lead in landfill regulations, while Asia-Pacific shows fastest growth due to urbanization.
- Major Manufacturers: Companies such as GSE Environmental, AGRU, Solmax, and Chinese producers dominate the supply chain.
- Emerging Markets: Africa and South America are adopting landfill liners to address waste management challenges.

 19. Detailed Installation Manual
 Step 1: Site Preparation
The subgrade must be smooth, compacted, and free of stones or debris. Any protrusions may puncture the liner.

 Step 2: Delivery and Storage
Rolls should be stored on level ground, covered from UV radiation, and handled with lifting equipment rather than dragging.

 Step 3: Deployment
Liners are deployed downslope to minimize wrinkles. Care must be taken to avoid damage during unrolling.

 Step 4: Seaming
Thermal welding methods are applied. Parameters such as temperature, pressure, and speed are carefully controlled.

 Step 5: Testing of Seams
Non-destructive tests like vacuum box or spark testing are conducted immediately after welding.

 Step 6: Covering
Once installed, liners are covered with protective geotextiles or soil to prevent UV degradation and mechanical damage.

 Step 7: Documentation
Every stage is documented with photographs, logs, and quality assurance reports for regulatory compliance.

 20. Testing Procedures Explained
Geomembranes undergo rigorous testing in both laboratory and field settings:
- ASTM D6693: Measures tensile properties.
- ASTM D4833: Determines puncture resistance.
- ASTM D1004: Evaluates tear resistance.
- GRI-GM13: Provides comprehensive specifications for HDPE geomembranes.
- Field Tests: Spark testing, vacuum box testing, and air channel pressure tests verify seam quality during installation.

 21. Future Outlook of Landfill Liners

With rising environmental concerns, landfill liner geomembranes are expected to evolve:
- Integration with Renewable Energy: Closed landfills with geomembrane caps are increasingly used for solar farm installations.
- Circular Economy: Recycling end-of-life geomembranes into new liners or other plastic products is gaining traction.
- Nanotechnology Additives: Improving chemical resistance and lifespan by incorporating nanoclays and graphene.
- Automation: Drones and robotic welders are being tested for precision liner installation and inspection.

 22. Frequently Asked Questions (FAQs)
Q1: How long do landfill liner geomembranes last?
A properly installed HDPE geomembrane can last over 30–50 years, depending on site conditions and protective cover.

Q2: Are geomembranes recyclable?
Yes, many HDPE and LLDPE liners can be recycled into secondary products, although contaminated liners require special handling.

Q3: Can geomembranes resist earthquakes?
Flexible geomembranes, especially LLDPE, perform better in seismic conditions due to their elongation capacity.

Q4: What is the typical thickness of landfill liners?
Common thicknesses range from 1.5 mm to 2.5 mm, though hazardous waste landfills may require thicker liners.

Q5: What happens if a liner is punctured?
Localized repairs can be made using thermal welding patches. Leak detection systems help identify issues early.

 23. Glossary of Key Terms
- Geomembrane: A synthetic barrier used for fluid containment.
- Leachate: Contaminated liquid formed when water passes through waste materials.
- Composite Liner: A system combining geomembranes with clay or geosynthetic clay liners.
- Textured Geomembrane: A geomembrane with rough surfaces for increased frictional resistance.
- Extrusion Welding: A seaming process where molten polymer is extruded to bond geomembrane sheets.
- Carbon Black: Additive providing UV resistance to polyethylene geomembranes.

 24. Extended Case Studies
 Case Study A: Mega Landfill in China
A large-scale municipal landfill near Beijing adopted a double-liner system consisting of a 2.0 mm HDPE geomembrane over a compacted clay liner. The system included a geonet drainage layer and leachate collection pipes. After a decade of operation, groundwater monitoring confirmed that no contamination had occurred, validating the effectiveness of composite geomembranes under high waste loads.

 Case Study B: Hazardous Waste Facility in the Middle East
An industrial hazardous waste landfill used a triple-liner system with HDPE geomembranes, GCLs, and leak detection layers. The system was designed to withstand extreme desert temperatures exceeding 50°C. Specialized resins with enhanced thermal resistance were selected to ensure long-term performance.

 Case Study C: Closed Landfill in North America
A closed landfill was capped with a geomembrane liner integrated into a gas collection system. Methane emissions were captured and used to generate electricity for the local grid. The geomembrane not only prevented infiltration but also enabled renewable energy recovery, highlighting its role in sustainable waste management.

 25. Environmental Benefits of Geomembranes
Geomembrane liners provide multiple environmental advantages:
- Soil Protection: Prevent hazardous leachate from contaminating soils and crops.
- Groundwater Conservation: Maintain safe drinking water supplies by preventing pollution of aquifers.
- Air Quality Improvement: Gas containment reduces odor and limits release of volatile organic compounds.
- Climate Change Mitigation: By capturing methane, geomembrane systems reduce greenhouse gas emissions and support energy recovery projects.

 26. Integration with Waste-to-Energy Projects
Landfill liners and covers are increasingly integrated with waste-to-energy initiatives:
- Biogas Recovery: Geomembrane covers channel methane into gas-to-energy plants.
- Solar Energy: Closed landfills with geomembrane caps provide stable surfaces for solar panel installations.
- Leachate Treatment: Geomembrane-lined ponds facilitate biological or chemical treatment of contaminated leachate before discharge.

 27. Technical Comparisons with Alternative Materials
When compared to alternative containment systems:
- Concrete Liners: While structurally strong, they are prone to cracking and are less flexible under differential settlement than geomembranes.
- Natural Clay: Requires significant thickness, often over 1 m, compared to only millimeters for geomembranes, reducing landfill capacity.
- Asphalt Barriers: Susceptible to chemical attack from aggressive leachate, unlike chemically resistant HDPE.

 28. Comprehensive Conclusion
Landfill liner geomembranes represent a cornerstone of modern waste management infrastructure. Their unparalleled impermeability, chemical resistance, and durability make them essential for protecting the environment and human health. While challenges such as installation complexity and susceptibility to damage remain, advancements in polymer science and installation technology continue to enhance reliability. As global waste volumes rise, geomembrane systems will play an even greater role in sustainable landfill design, integrating with renewable energy projects and circular economy practices. By balancing technical performance, cost-effectiveness, and environmental stewardship, landfill liner geomembranes will remain at the forefront of geosynthetic engineering for decades to come.

 29. Historical Development of Geomembrane Liners
The concept of lining landfills to prevent contamination dates back to the mid-20th century. Early approaches relied on compacted clay layers, but these proved insufficient under increasing waste volumes and chemical aggressiveness. By the 1970s, synthetic polymer liners began to replace clay due to their superior impermeability. HDPE emerged as the dominant material by the 1980s, owing to its chemical stability and mechanical strength. Over time, advancements in manufacturing and quality assurance have standardized geomembrane performance, leading to widespread adoption in modern landfills worldwide.

 30. Technical Deep Dive: Stress Cracking and Oxidative Aging
 Stress Cracking
One of the most studied failure modes of HDPE liners is stress cracking. This phenomenon occurs when a geomembrane under constant stress develops micro-cracks that propagate over time. Manufacturers combat this by optimizing resin formulations and incorporating antioxidants.

 Oxidative Aging
Over decades, polymers can degrade through oxidation, particularly if antioxidants are depleted. To counter this, liners are formulated with stabilizers that extend service life. Field studies show that properly formulated HDPE liners can exceed 50 years of effective service under moderate conditions.

 31. Regional Practices and Standards
Different regions implement geomembrane technologies based on local regulations and climate conditions:
- North America: Strong emphasis on composite liner systems regulated by the US EPA. Widespread adoption of leak detection technologies.
- Europe: The EU Landfill Directive mandates strict double-liner systems for hazardous waste, ensuring redundancy and leak detection.
- Asia-Pacific: Rapid growth in geomembrane use, driven by urbanization and rising environmental concerns. Flexible LLDPE is often favored due to challenging soil conditions.
- Middle East: Special formulations resistant to high UV exposure and extreme heat are commonly deployed.
- Africa: Adoption is increasing, though limited by funding and technical expertise. International aid projects often incorporate geomembrane technologies to protect vital water resources.

 32. Future Innovations on the Horizon
Research continues to push the boundaries of geomembrane technology:
- Self-Healing Liners: Experimental designs incorporate microcapsules of resin that release and seal small punctures automatically.
- Graphene-Enhanced Liners: Graphene additives show promise in improving tensile strength and chemical resistance.
- Smart Monitoring Systems: Embedding fiber optic cables or conductive pathways within liners enables continuous monitoring of strain and leakage.
- Biodegradable Alternatives: Although not yet commercially viable, research explores eco-friendly polymers that degrade safely at end-of-life while maintaining performance during service.



 33. Training and Workforce Requirements
Proper installation of landfill liner geomembranes demands highly trained personnel. Crews must be skilled in handling large rolls, operating thermal welding machines, and conducting field quality control tests. Certification programs exist in many countries, requiring technicians to demonstrate proficiency in seam welding, vacuum testing, and leak detection. Regular retraining ensures workers remain updated on the latest standards and technologies. The availability of skilled labor is often a bottleneck in dev...



 34. Extended Glossary of Technical Terms
- Anchor Trench: A trench excavated at the perimeter of a landfill to secure geomembrane edges and prevent slippage.
- CQA (Construction Quality Assurance): A process ensuring geomembrane installation meets design and regulatory specifications.
- GCL (Geosynthetic Clay Liner): A factory-manufactured hydraulic barrier consisting of bentonite clay between geotextiles, often used in combination with geomembranes.
- Hot Wedge Welding: A thermal seaming method where a heated wedge fuses overlapping geomembrane sheets.
- Leak Location Survey: A technique for detecting liner defects using electrical conductivity differences between wet soil and the liner.
- Oxidative Induction Time (OIT): A laboratory test measuring the resistance of geomembranes to oxidative degradation.
- Textured Surface: A roughened geomembrane surface providing increased interface friction against soil or geotextiles.

In particular, solutions such as HDPE Landfill Liner Geomembrane, Waterproof Landfill Liner Geomembrane, and Flexible Landfill Liner Geomembrane are highlighted as essential technologies in modern landfill engineering.
