 Composite Drainage Net: Comprehensive Product Introduction

 Introduction
Water management is a critical aspect of modern civil engineering, geotechnical projects, and environmental protection systems. Uncontrolled water movement can weaken soils, damage structures, and lead to failures in embankments, retaining walls, landfills, and green infrastructure. Traditional drainage methods such as gravel layers, sand blankets, or perforated pipes often require significant excavation, material transport, and longterm maintenance. The Composite Drainage Net (CDN) has emerged as ...

 1. Definition and Importance

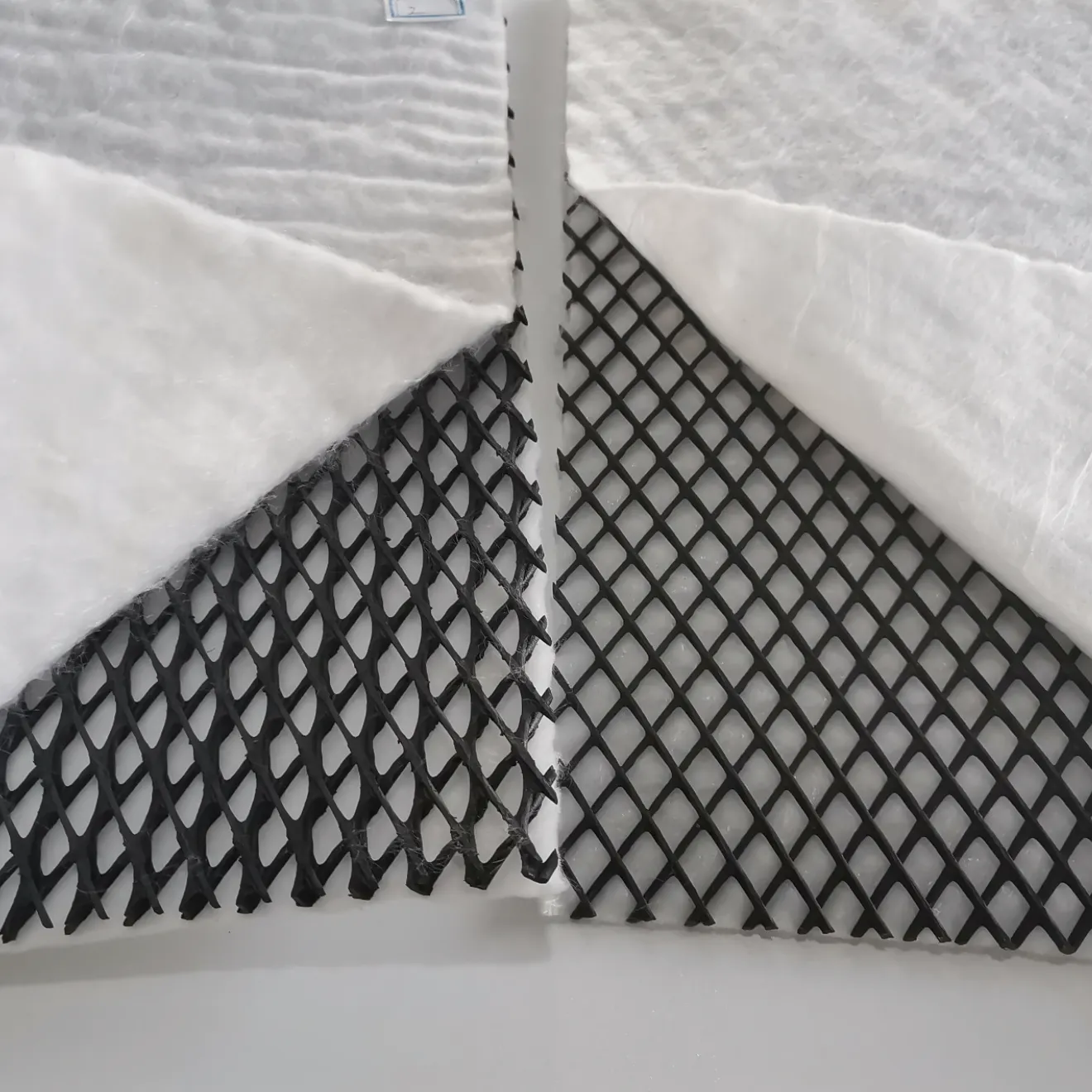

A composite drainage net is a geosynthetic product consisting of a polymeric drainage core—commonly structured as a biplanar or triplanar net—bonded with one or two layers of geotextiles. The drainage core, usually made from highdensity polyethylene (HDPE), provides high inplane flow capacity, while the geotextiles serve as filters that prevent soil particles from clogging the drainage channels. This integrated design ensures longlasting water flow, soil retention, and protection against hydrostatic p...

 2. Material Composition
Composite drainage nets typically include:
- Drainage Core: HDPE biplanar or triplanar geonet structure providing void space and flow channels.
- Geotextile Filter Layer: Nonwoven PP or PET fabrics bonded on one or both sides, allowing water to enter while filtering soil.
- Adhesive or Thermal Bonding: Ensures stable lamination between geonet and geotextile.
- Optional Layers: Additional protection geotextiles or geomembranes for specific containment applications.

 3. Manufacturing Process
The production of composite drainage nets involves:
1. Extrusion of Geonet Core: Molten HDPE extruded into intersecting ribs forming a net structure.
2. Geotextile Preparation: Nonwoven geotextiles produced by needle punching or spunbonding.
3. Lamination: Geotextiles bonded to the geonet core by thermal bonding or adhesives.
4. Quality Control: Dimensional checks, bond strength tests, transmissivity measurements, and filtration performance validation.
5. Roll Packaging: Large rolls prepared for easy handling and installation at project sites.

 4. Key Functions
Composite drainage nets fulfill multiple engineering functions:
- Drainage: Provide continuous flow paths to remove water and gases.
- Filtration: Geotextile layers prevent soil migration into drainage channels.
- Separation: Prevent intermixing of soil and drainage layers.
- Protection: Shield geomembranes or other geosynthetics from puncture and mechanical damage.
- Reinforcement: Enhance stability of slopes and retaining structures by controlling pore water pressures.

 5. Applications
Composite drainage nets are used in diverse projects:
- Landfills: Drainage layers above and below geomembranes for leachate and gas collection.
- Roadways and Railways: Subsurface drainage to prevent water accumulation and frost heave.
- Retaining Walls: Vertical drainage behind walls to relieve hydrostatic pressure.
- Green Roofs: Lightweight drainage layers supporting vegetation while preventing waterlogging.
- Tunnels and Basements: Drainage mats protecting waterproofing membranes and guiding water to collection systems.
- Sports Fields: Rapid removal of excess water to maintain playable surfaces.

 6. Design Considerations
When specifying composite drainage nets, engineers must account for:
1. Transmissivity: Ability of the geonet to transmit fluids under load; determined by ASTM D4716 tests.
2. Creep Resistance: Longterm deformation of the drainage core under sustained loads.
3. Geotextile Opening Size: Must balance filtration (retaining soil) and permeability (allowing water flow).
4. Chemical Resistance: HDPE must withstand acids, alkalis, leachates, and organic compounds.
5. Biological Resistance: Materials must resist microbial degradation, root penetration, and burrowing organisms.
6. Interface Friction: Interaction with adjacent soils and geosynthetics critical for slope stability.
7. Service Life: Designs typically target 50–100 years in landfill applications, validated by durability studies.

 7. Installation Procedures
Proper installation ensures reliable drainage:
- Subgrade Preparation: Smooth, compacted surface free of sharp protrusions.
- Roll Deployment: Unroll nets carefully, aligning overlaps per manufacturer’s guidelines.
- Seaming: Overlap geotextile edges by 100–150 mm; tie or sew where necessary.
- Anchoring: Use sandbags or ballast to prevent movement during cover placement.
- Cover Placement: Place soil or protective layers without dropping heavy loads that could crush the net structure.
- Inspection: Ensure continuity of drainage paths and integrity of geotextile filters.

 8. Testing and Quality Control
To guarantee performance, composite drainage nets undergo rigorous testing:
- Transmissivity (ASTM D4716): Flow capacity under confining stress and hydraulic gradient.
- Geotextile Properties (ASTM D4491, D4751): Permittivity and apparent opening size.
- Tensile Strength (ASTM D4595): Confirms resistance to stretching and tearing.
- Peel Strength: Validates bonding between geotextile and geonet core.
- Creep Testing: Evaluates longterm deformation under constant load.
- Chemical Resistance Tests: Ensure stability in aggressive environments such as leachates.

 9. Advantages
- High Drainage Capacity: Efficient flow even under high loads.
- Material Savings: Replaces thick gravel or sand drainage layers, reducing excavation and transport costs.
- Lightweight and Easy to Install: Reduces labor and equipment needs.
- Durability: Resistant to chemicals, UV radiation, and biological attack.
- Environmental Benefits: Conserves natural aggregates and reduces carbon footprint of drainage systems.
- Versatility: Functions in horizontal, vertical, and inclined applications.

 10. Limitations and Challenges
- Creep Sensitivity: Longterm reduction in flow capacity under heavy loads must be considered.
- Clogging Risks: Improperly selected geotextiles may clog, reducing efficiency.
- Installation Damage: Care required to avoid crushing ribs during cover placement.
- Temperature Limits: Extreme heat can soften polymer; cold may reduce flexibility.
- Cost Perception: Higher initial cost than gravel in regions with abundant aggregates, though lifecycle savings are significant.

 11. Case Studies
 Case Study 1: Municipal Landfill in the USA
Composite drainage nets used as leachate collection layers reduced gravel usage by 90% and ensured compliance with EPA standards.

 Case Study 2: Highway in Germany
Installed beneath roadbeds, CDNs prevented water buildup, extending pavement life and reducing freeze–thaw damage.

 Case Study 3: Retaining Wall in Japan
Vertical drainage mats relieved hydrostatic pressure, preventing wall tilting and reducing maintenance costs.

 Case Study 4: Green Roof in Singapore
Lightweight CDNs facilitated drainage while supporting lush vegetation, reducing building cooling loads.

 Case Study 5: Sports Field in Brazil
Drainage mats maintained playable conditions even after heavy rain, reducing downtime for matches.

 12. Economic Benefits
Composite drainage nets deliver significant economic advantages:
- Material Cost Reduction: Savings from replacing thick aggregate layers.
- Transportation Savings: Lower hauling requirements reduce logistics costs.
- Installation Efficiency: Faster deployment decreases labor expenses.
- Landfill Airspace Preservation: Eliminating gravel increases available disposal volume.
- Long Service Life: Minimizes need for replacement or remediation, reducing lifecycle costs.

 13. Regional Practices
- North America: EPA regulations drive widespread use in landfill liners and covers.
- Europe: Emphasis on sustainability and urban green infrastructure accelerates CDN adoption.
- AsiaPacific: Rapid infrastructure development and urbanization increase demand in roads, tunnels, and buildings.
- Middle East: Lightweight drainage nets ideal for green roofs and landscaping in arid climates.
- Africa: Emerging use in mining, road construction, and waste containment.
- Latin America: Adoption in sports facilities, agriculture, and municipal waste projects.

 14. Sustainability and Environmental Impact
- Aggregate Conservation: Reduces extraction of gravel and sand, preserving natural landscapes.
- Carbon Footprint Reduction: Lightweight materials lower transport emissions.
- Stormwater Management: Supports sustainable drainage systems (SuDS) in urban areas.
- Recyclability: Many HDPE cores are recyclable at end of service life.
- Support for Green Infrastructure: Essential in green roofs, wetlands, and ecoparks.

 15. Technological Innovations
Recent advances in composite drainage nets include:
- Triplanar Cores: Provide higher flow capacity under extreme loads compared to biplanar designs.
- Conductive Layers: Facilitate leak detection in landfill lining systems.
- NanoEnhanced Polymers: Improve creep resistance and longterm durability.
- Smart Monitoring: Integration with IoT sensors for realtime flow monitoring.
- Hybrid Systems: Combination with geocomposites such as clay liners or geomembranes for multifunctional barriers.

 16. Historical Development
The evolution of drainage systems illustrates the growing importance of geosynthetics. Ancient civilizations relied on stone, clay pipes, and gravel drains to channel water. By the 20th century, engineers used perforated pipes and granular filters. However, these methods consumed vast natural resources and occupied valuable space. In the late 1970s, geonet technology emerged as a lightweight, highcapacity drainage medium. The integration of geotextiles created composite drainage nets that combined drain...

 17. Role in Disaster Resilience
Composite drainage nets play a crucial role in disaster mitigation and climate resilience:
- Flood Protection: Provide rapid drainage in levees, embankments, and urban flood defenses.
- Landslide Prevention: Reduce pore water pressures in slopes, enhancing stability.
- Earthquake Zones: Flexible structure accommodates seismic movements while maintaining flow channels.
- Storm Events: Maintain drainage in sports fields, airports, and highways, preventing disruptions.
- Emergency Infrastructure: Quick to deploy in temporary drainage systems for disaster relief camps.

 18. Performance Metrics
Key performance metrics of CDNs include:
- Transmissivity (θ): Ability to transmit fluid under pressure, measured in m²/s.
- Creep Behavior: Longterm flow reduction under sustained load, expressed as reduction factors.
- Geotextile Permittivity: Rate of water flow per unit head, ensuring infiltration capacity.
- Clogging Resistance: Ability to resist soil particle intrusion and biofouling.
- Interface Friction Angle: Governs stability on slopes when placed against geomembranes or soils.
- Durability Indices: Retained strength after chemical, thermal, and biological aging tests.

 19. Education and Workforce Training
Proper use of CDNs requires skilled personnel:
- University Curricula: Civil and geotechnical engineering programs now include geosynthetics modules.
- Professional Training: Installer certification programs ensure consistent quality.
- OnSite Workshops: Field crews trained in deployment, seaming, and inspection procedures.
- Research Conferences: International geosynthetics societies share case studies and innovations.
- Public Education: Raising awareness of CDN benefits supports adoption in green infrastructure projects.

 20. Standards and Regulations
Composite drainage nets are governed by international and national standards:
- ASTM D4716: Test method for transmissivity of geosynthetics under load.
- ASTM D7003: Creep testing for geonets.
- ISO 12958: Hydraulic performance testing of drainage geocomposites.
- EPA (USA): Mandates geosynthetic drainage layers in landfills.
- EU Regulations: Require geocomposites in waste containment and groundwater protection.
- National Codes: Many countries incorporate CDNs in highway, railway, and urban drainage standards.

 21. Market Outlook
The global market for composite drainage nets is expanding:
- Market Size: Valued at USD 1.5 billion in 2023, projected CAGR 8–10%.
- Growth Drivers: Urbanization, stricter environmental laws, and infrastructure investment.
- Regional Leaders: AsiaPacific dominates due to massive construction activity; Europe emphasizes sustainability.
- Emerging Markets: Africa and Latin America show increasing demand for mining, roads, and waste facilities.
- Future Trends: Smart monitoring, recyclable materials, and multifunctional geocomposites will shape the industry.

 22. Integration with Green Infrastructure
CDNs contribute to sustainable and ecofriendly urban development:
- Green Roofs: Lightweight drainage without overloading structures.
- Permeable Pavements: Subsurface drainage mats accelerate runoff infiltration and storage.
- Urban Parks: Maintain healthy soil moisture levels in landscaped areas.
- Stormwater Harvesting: Collect and convey water for reuse in irrigation or cooling.
- Climate Adaptation: Enable cities to handle intense rainfall events linked to climate change.

 23. Extended Case Studies
 Case Study: Landfill in Australia
A triplanar CDN provided superior leachate drainage under high compressive loads, outperforming gravel layers and conserving landfill airspace.

 Case Study: Retaining Structure in Italy
Vertical CDNs installed behind masonry retaining walls relieved hydrostatic pressure and preserved the historic structure.

 Case Study: Airport Runway in China
Subsurface CDNs drained stormwater efficiently, reducing downtime and improving runway safety during monsoon rains.

 Case Study: Green Park in Canada
CDNs installed beneath lawns prevented waterlogging, improving grass health and reducing irrigation frequency.

 Case Study: Tunnel in Switzerland
CDNs protected waterproofing membranes in a mountain tunnel, channeling seepage water safely to collection drains.

 24. Glossary of Key Terms
- Biplanar Net: Geonet core with intersecting ribs forming two planes for fluid flow.
- Triplanar Net: Core with three intersecting rib orientations for higher transmissivity.
- Permittivity: Water flow capacity through geotextile per unit head.
- Transmissivity: Water flow within the plane of geonet under pressure.
- Creep: Timedependent deformation under constant stress, reducing flow capacity.
- Hydraulic Gradient: Driving force for water movement across a drainage layer.

 25. Global Significance
Composite drainage nets contribute to global sustainability and resilience goals. They conserve natural resources by replacing gravel, reduce emissions through lightweight logistics, and extend the service life of infrastructure by managing water effectively. Their adaptability across climates—from deserts to monsoon regions—makes them a universal tool for engineers. By enabling safe waste containment, stable slopes, and greener cities, CDNs advance multiple UN Sustainable Development Goals including C...

 26. Comprehensive Conclusion
Composite drainage nets represent a convergence of engineering performance, sustainability, and cost efficiency. They fulfill essential functions of drainage, filtration, and protection while reducing reliance on scarce natural resources. Their versatility extends from critical landfill liners to urban landscapes and sports fields. As urbanization and climate pressures intensify, CDNs will play an even greater role in securing infrastructure resilience. With continuous innovation and rigorous standards, ...

 27. Procurement and Specification Guidelines
When procuring composite drainage nets, owners and contractors should specify:
- Core Structure: Biplanar or triplanar depending on load conditions.
- Geotextile Properties: Nonwoven PP/PET, weight, permittivity, and opening size.
- Bond Strength: Minimum peel strength between net and geotextile layers.
- Transmissivity Requirements: Verified under projectspecific loads and gradients.
- Durability Standards: Chemical, UV, and biological resistance certifications.
- Roll Dimensions: Length, width, and handling weight suited to installation equipment.
- Documentation: Test certificates, installation manuals, and quality assurance protocols.

 28. Maintenance and Lifecycle Management
Composite drainage nets require minimal but important maintenance:
- Inspection Intervals: Annual inspections in landfills and drainage systems to confirm performance.
- Surface Vegetation: Ensure plant roots or biofilms do not clog geotextiles.
- Drainage Outlets: Maintain collection pipes and outlets free of sediment or blockages.
- Monitoring: In landfills, monitor leachate levels and flow rates to ensure consistent drainage.
- Service Life Extension: With proper cover and protection, CDNs can last decades, aligning with infrastructure lifespans.

 29. Risk Management
Potential risks associated with CDNs include:
- Overloading: Exceeding design loads can crush the drainage core.
- Improper Overlaps: Gaps or misaligned seams reduce flow continuity.
- Chemical Attack: Exposure to incompatible chemicals can degrade polymers.
- Fire Hazards: Unprotected storage may pose fire risks for polymer rolls.
- Mitigation: Follow manufacturer guidelines, ensure quality control, and design with reduction factors for longterm performance.

 30. Owner Decision Checklist
1. What is the design life of the facility?
2. What loading conditions will the drainage net experience?
3. Which type of core—biplanar or triplanar—is more suitable?
4. Are geotextile filters matched to soil conditions?
5. Has creep reduction been accounted for in design?
6. Are chemical exposures identified and compatible with HDPE?
7. Is installation team trained in geosynthetics handling?
8. Will quality assurance testing be performed during construction?
9. What is the contingency plan if flow capacity reduces over time?
10. How will longterm monitoring be implemented?

 31. Future Vision
Looking ahead, composite drainage nets are expected to integrate with advanced technologies:
- Smart Sensors: Embedded flow and pressure sensors providing realtime monitoring.
- Circular Materials: Greater use of recycled polymers and designs for recyclability.
- Hybrid Systems: Integration with geomembranes, geogrids, and geosynthetic clay liners for multifunctional performance.
- Automation: Robotic installation for large projects to improve efficiency and consistency.
- Climate Resilience: Engineered for extreme rainfall, drought cycles, and seismic impacts in a changing climate.

 32. Frequently Asked Questions (FAQ)
Q1: Can composite drainage nets replace gravel completely?
Yes, they can substitute thick gravel layers while delivering equal or superior drainage performance.

Q2: How long do CDNs last?
Properly designed and installed CDNs can last 50–100 years, matching the lifespan of landfills or major infrastructure.

Q3: Do CDNs work on steep slopes?
Yes, if friction angles and interface stability are properly considered in design. Textured geomembranes and geotextiles improve stability.

Q4: What happens if the geotextile clogs?
Modern geotextiles are engineered for clogging resistance. Proper soil compatibility testing ensures longterm filtration.

Q5: Are CDNs environmentally friendly?
They save aggregates, reduce carbon emissions, and many are recyclable, making them ecofriendly solutions.

 33. Closing Reflections
Composite drainage nets embody the evolution of geosynthetic engineering: lightweight, durable, efficient, and sustainable. They demonstrate how polymer technology can solve ageold water management challenges more effectively than conventional methods. Their adoption worldwide across landfills, highways, green roofs, and sports fields shows their universal applicability. As infrastructure and environmental standards rise, CDNs will continue to safeguard communities, protect resources, and strengthen re...

 34. Extended Global Case Studies
 Landfill Expansion in the United States
In a major municipal landfill expansion, composite drainage nets were chosen to replace traditional gravel drainage layers. Engineers estimated that over 100,000 tons of gravel would have been required. By substituting CDNs, the project saved millions of dollars in material and hauling costs. Additionally, landfill airspace was preserved, extending the facility’s service life by several years. The CDN system maintained excellent leachate flow even under extreme compressive loads, demonstrating its relia...

 High-Speed Rail Project in China
During construction of a high-speed rail line, subsurface drainage was critical to prevent water accumulation under tracks. Composite drainage nets were installed beneath embankments and behind retaining structures. The lightweight rolls allowed fast installation across hundreds of kilometers, reducing project delays. Performance monitoring confirmed consistent drainage, supporting safe and reliable train operations.

 Green Building in Germany
A sustainable office complex in Germany incorporated green roofs with composite drainage nets beneath vegetated layers. The nets provided efficient drainage while supporting root growth and preventing waterlogging. The system contributed to LEED Platinum certification by improving stormwater management and reducing building energy loads.

 Mining Project in Chile
A copper mine in Chile required durable drainage in heap leach pads. Triplanar composite drainage nets offered superior flow under high ore loads and aggressive chemical leachates. The system maintained flow capacity throughout operations, improving metal recovery rates and ensuring environmental compliance.

 Airport Expansion in the Middle East
In a desert climate, an international airport expansion used CDNs beneath runways and taxiways. The nets rapidly drained flash flood waters, minimizing operational disruptions. Their chemical resistance and durability were essential in resisting jet fuel spills and deicing agents.

 35. Comprehensive Conclusion
Composite drainage nets have redefined water management across geotechnical and civil engineering applications. By combining the flow capacity of geonets with the filtration and soil retention properties of geotextiles, they deliver an elegant solution that is lighter, faster to install, and more sustainable than traditional gravel systems. Their benefits span economics, performance, and environmental stewardship. With global adoption accelerating, supported by rigorous standards and continuous innovatio...

 36. Final Perspective
The Composite Drainage Net is more than a technical geosynthetic—it is a cornerstone of resilient, sustainable, and modern infrastructure. By replacing heavy, resource-intensive gravel layers, it helps conserve natural materials and reduce emissions. By combining drainage, filtration, separation, and protection in one system, it offers unmatched versatility across landfills, roads, railways, green roofs, tunnels, and sports fields. Its longevity ensures that investments today will continue delivering bene...

In particular, the Durable Composite Drainage Net, Flexible Composite Drainage Net, and Lightweight Composite Drainage Net are recognized for delivering strength, adaptability, and ease of handling across diverse engineering applications.
