Composite Drainage Net for Underground Garage: Comprehensive Product Introduction

 Executive Summary
Water is the most persistent adversary of underground garages. Lateral groundwater pressure, capillary rise, perched water tables after storms, and accidental plumbing leaks can overwhelm concrete substrates and waterproofing membranes, causing seepage, blistering, efflorescence, corrosion of reinforcement, and service disruptions. A Composite Drainage Net (CDN)—a geosynthetic drainage core laminated with geotextile filters—creates a continuous, highcapacity flow path that intercepts and redirects water before it accumulates. Compared with granular drains, a CDN is lighter, thinner, faster to install, and measurably more consistent under load. This document presents a full technical and commercial brief tailored to underground garages, from materials and manufacturing to design, installation, QA/QC, economics, sustainability, and longterm operations.

 1. Product Definition and Value Proposition

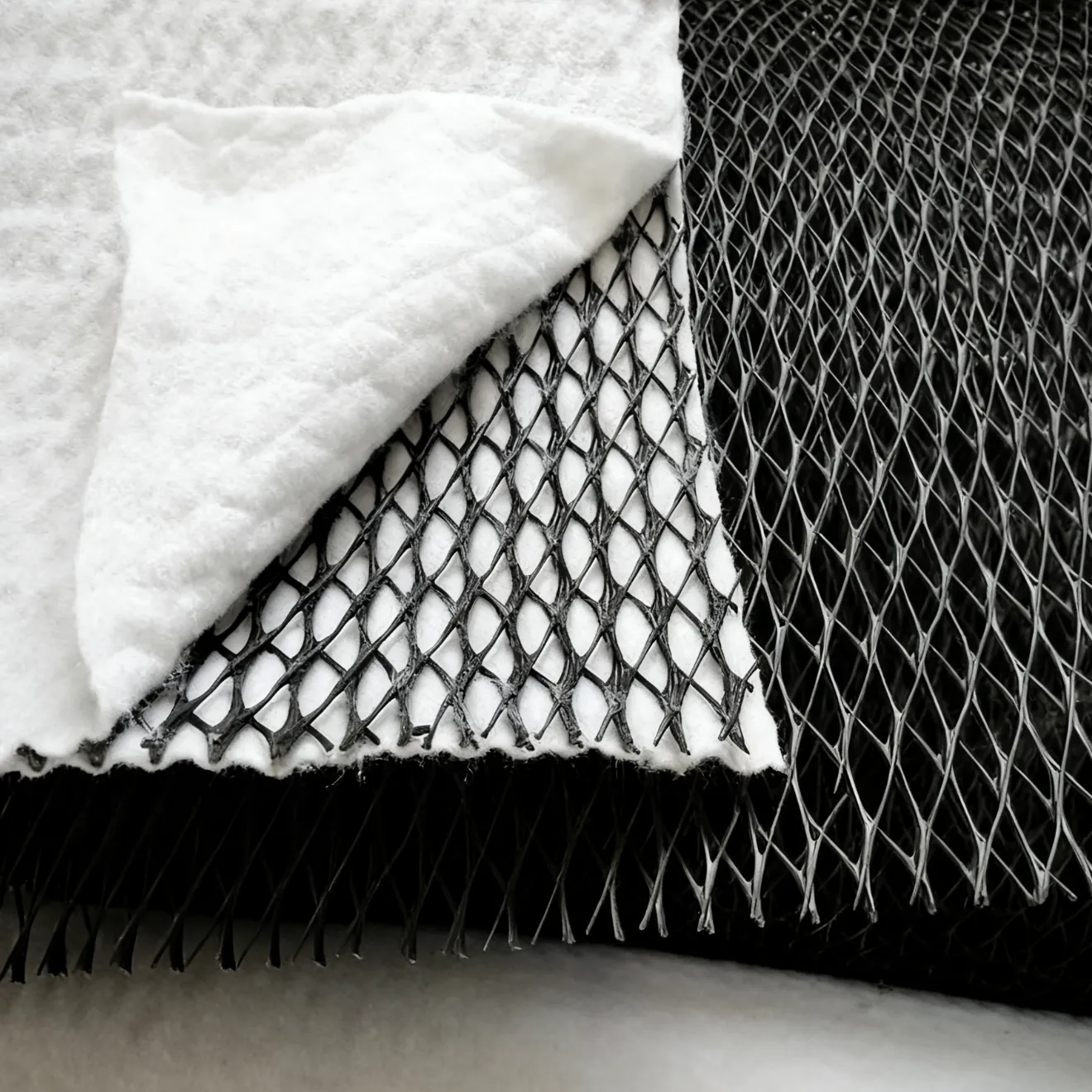

A Composite Drainage Net for Underground Garage is a factorylaminated geocomposite consisting of:
- Drainage Core: A biplanar or triplanar geonet made primarily from highdensity polyethylene (HDPE). The ribs form stable channels that maintain inplane transmissivity under compressive loads from soil backfill and structural elements.
- Filter/Protection Geotextile(s): Nonwoven polypropylene (PP) or polyester (PET) fabrics thermally or adhesively bonded to one or both faces of the core. They admit water, retain soil particles, and protect the core and adjacent waterproofing.
- Optional Facers: A light scrim or frictionenhancing fleece on the membranefacing side to improve interface stability and reduce slippage on smooth waterproofing sheets.

Why underground garages need a CDN:
1) Hydrostatic relief: Rapid lateral conduction to collection points prevents pressure buildup against walls and slabs.
2) Reduced risk at joints and penetrations: By lowering water head, the CDN minimizes leakage pathways at cold joints, tiebacks, pipe sleeves, and construction joints.
3) Slim profile, big performance: One roll replaces a thick gravel layer, saving volume and avoiding load on retaining structures.
4) Predictable longterm flow: Engineered cores resist creep; performance is validated by standardized transmissivity testing.
5) Constructability: Rolls are lightweight, clean, and simple to cut and seam—ideal for confined downtown sites.

 2. Material Composition and Options
 2.1 Geonet Drainage Core
- HDPE resin: High molecular weight for strength and chemical resistance; carbon black for UV stabilization during handling.
- Biplanar vs triplanar: Biplanar cores have intersecting ribs in two planes; triplanar adds a third rib orientation, improving load distribution and maintaining voids under higher confining stress—useful beneath deep backfills or traffic loads near the garage roof slab.
- Nominal thickness: Commonly 5–10 mm; selected based on required transmissivity under design load and gradient.

 2.2 Geotextile Filters
- Nonwoven PP/PET: Needlepunched for porosity and hydraulic performance.
- Key parameters: Mass per unit area, permittivity (crossplane flow), apparent opening size (AOS) for filtration, and puncture/tear resistance to protect membranes.
- Single vs doublesided: Doublesided laminates are used when water can arrive from both directions (e.g., wall drainage with soil at the back and seepage toward the interior).

 2.3 Lamination Bond
- Thermal bonding or adhesive lamination secures the textile to the core. Bond strength is critical for handling and for maintaining filter contact with the core under load, preventing soil ingress into flow channels.

 2.4 Accessory Components
- Prefabricated edge drains, Tjunctions, corner pieces, termination bars, compatible tapes, and connectors to tie into sumps and perforated collector pipes.

 3. Manufacturing Overview and Quality Controls
1. Core extrusion: HDPE molten ribbons are extruded and interlaced to form a uniform net; chill rollers set geometry and thickness.
2. Textile production: Nonwovens are produced by carding and needlepunching or spunbonding to achieve target porosity and strength.
3. Lamination: Continuous thermal or adhesive bonders marry the textile(s) to the core.
4. Finishing: Rolls are edgetrimmed, labeled with lot numbers, and packaged for site handling.
5. Factory QA: Thickness, mass, rib geometry, bond strength, transmissivity, permittivity, AOS, and creep screening; retainedproperty testing after chemical/thermal conditioning for durability assurance.

 4. Functional Mechanics for Underground Garages
- Drainage (transmissivity): The CDN provides a highcapacity inplane path that conveys water to vertical collectors or perimeter footings.
- Filtration: Geotextiles admit water while retaining fines, preventing clogging of the core.
- Separation and protection: The textile acts as a cushion between soil/shotcrete and the waterproofing membrane, reducing puncture risk.
- Hydrostatic pressure reduction: By limiting head against walls and slabs, the CDN safeguards joints and reduces leakage stresses.
- Gas venting (optional): In sites with trapped gases, the core also provides vent pathways to designed outlets.

 5. Typical Underground Garage Assemblies
 5.1 Basement Wall (EarthRetained)
Soil → Geotextile (outer face) → Geonet core → Geotextile (inner face) → Waterproofing membrane → Concrete wall.
Water entering from the soil passes the outer textile, flows vertically in the core, and discharges at footing drains or collector panels. The inner textile cushions the membrane.

 5.2 Raft Slab (BelowSlab Drainage)
Subgrade → Geotextile → Geonet core → Geotextile → Protection board (if specified) → Waterproofing → Slab reinforcement and concrete.
The CDN migrates underslab water toward sumps, reducing uplift pressure.

 5.3 BlindSide Against Shoring
For diaphragm walls, secant piles, or soldier pile/shotcrete shoring: Shoring face → CDN → Waterproofing (preapplied or looselaid) → Structural concrete pour. The CDN ensures seepage at the shoring interface is relieved during and after construction.

 5.4 Podium/Ramp Interface
At ramp walls and transitions, the CDN intercepts lateral flow, directing it to trench drains without loading the ramp slab.

 6. Design Considerations Specific to Underground Garages
1. Transmissivity under confining load: Select core geometry to maintain required flow at design vertical stress (backfill depth) and hydraulic gradient.
2. Creep and reduction factors: Apply longterm reduction factors for creep, intrusion of textiles, biological growth, chemical exposure, and installation damage—ensuring design flow for the service life.
3. Filtration compatibility: Match geotextile AOS and permittivity to site soils (e.g., wellgraded sands vs silts/clays) to avoid clogging while maintaining inflow.
4. Interface friction: Verify shear resistance at interfaces (CDN/membrane and CDN/soil), especially on tall walls or sloped ramp approaches; use textured membranes or fleecebacked faces if required.
5. Discharge strategy: Provide continuous collection lines at footings, daylighting points, and sumps sized for peak inflows; include cleanouts.
6. Durability: Confirm chemical compatibility with groundwater (chlorides, sulfates, hydrocarbons) and resistance to root penetration in landscaped setbacks.
7. Fire and lifesafety: During storage/handling, treat rolls as polymer goods; in service they are encapsulated and separated from occupied spaces.
8. Coordination with waterproofing: Ensure full adhesion or correct looselay details so the CDN does not compromise the membrane bond or continuity.

 7. Hydraulics, Loads, and Service Life Modeling
- Hydraulic gradient: For vertical walls, gradients are driven by water head to discharge points; for slabs, gravity and sump spacing control lateral flow length.
- Confining stress: Backfill depth and compaction impose compressive loads; triplanar cores hold voids more effectively at high stress.
- Creep: Longterm rib deformation reduces flow; selection and reduction factors account for endoflife capacity.
- Service life: With proper factors and compatible soils/chemistry, underground garage CDNs are designed for multidecade performance aligned with the structure’s life.

 8. Installation Workflow and Best Practices
1. Substrate preparation: Remove protrusions and debris from waterproofing or shoring faces; achieve plane surfaces for intimate contact.
2. Orientation and layout: Install rolls with flow direction aimed at collectors (vertical on walls, toward sumps on slabs). Overlap geotextile flaps 100–150 mm; stagger roll ends.
3. Temporary anchorage: Use termination bars, nails with washers (where permitted), or compatible doublesided tapes to tack in place prior to backfill.
4. Seams and transitions: Where two rolls meet, ensure geotextile continuity; tie, sew, or heattack as specified. Provide formed inside/outside corner pieces to maintain flow.
5. Penetrations: Cut neat openings; wrap with geotextile sleeves and seal to membrane flashings to avoid fines ingress.
6. Connections to drains: Terminate at perforated pipes inside collection trenches or factory edge drains; protect outlets with filter socks and cleanouts.
7. Backfilling: Place backfill lifts carefully; avoid point loads that crush ribs. Use rounded aggregates or screened fills near the wall.
8. Protection layers: Where required, add protection boards between CDN and membrane at highrisk zones (rebar chairs, tiebacks).
9. Documentation: Asbuilt seam/roll maps and photos of critical details aid future maintenance.

 9. Quality Assurance / Quality Control
- Preinstallation: Verify product certificates for transmissivity, geotextile permittivity/AOS, bond strength, and thickness.
- Field checks: Inspect overlap widths, roll orientation, and secure terminations. Perform pull tests on bonds if required.
- Drainage continuity test: Where feasible, hose tests or localized water introduction confirm flow to sumps/collectors before concealment.
- Protection signoffs: No backfill until QC acceptance; no heavy equipment directly on exposed CDN.
- Turnover package: Include product data, lot numbers, asbuilt drawings, and O&M instructions.

 10. Integration with Waterproofing Systems
Underground garages typically employ sheet membranes (e.g., PVC/TPO/HDPE), liquidapplied membranes, or preapplied blindside systems. The CDN must complement, not compromise the waterproofing:
- Positiveside walls: CDN outside the membrane, against soil, relieves pressure without piercing the membrane.
- Blindside: CDN against shoring, membrane inward, concrete cast against the membrane—maintains bond while draining the shoring face.
- Underslab: CDN beneath membrane (toward soil) directs water to sumps; protect membrane above from construction traffic.
- Detailing: Use compatible primers/sealants where the CDN interfaces with flashings, waterstops, and terminations.

 11. Advantages in Underground Garage Applications
- High drainage capacity at minimal thickness, freeing space and reducing loads on retaining systems.
- Predictable longterm performance validated by transmissivity/creep testing.
- Constructability in constrained sites with clean, fast roll installation—no gravel haul or disposal.
- Improved membrane protection and reduction of hydrostatic head at joints and penetrations.
- Lifecycle economy: Fewer callbacks, reduced leak mitigation, and lower maintenance for pump systems due to controlled inflows.

 12. Limitations and Mitigation
- Potential creep reduction: Mitigate by selecting triplanar cores and applying conservative reduction factors.
- Clogging risk in fine silts: Match geotextile AOS and consider a granular transition or additional filter layer in problematic soils.
- Interface slippage on smooth membranes: Use fleece/textured interfaces or mechanical terminations.
- Point load damage during backfill: Enforce lift heights and use protective cushions where needed.

 13. Codes, Standards, and Reference Tests
While building codes focus on waterproofing performance, geosynthetic drainage relies on standardized tests and accepted practice, including:
- Transmissivity under load: Commonly tested in accordance with recognized methods for geocomposite transmissivity.
- Creep/longterm flow: Specialized protocols evaluate reduction over time.
- Geotextile filtration: Permittivity and apparent opening size tests guide soil compatibility.
- Interface shear: Direct shear tests quantify friction at membrane/CDN/soil planes.
Project specifications should cite the above property requirements at design confining stresses and temperatures relevant to the garage’s depth and climate.

 14. System Sizing and Drainage Layout
- Walls: Vertical CDN strips tied to footing collector pipes at 6–10 m spacing, with continuous perimeter discharge to sumps or daylight (where grade permits).
- Underslab: Panels pitched (1–2%) toward linear drains or point sumps; spacing based on predicted inflow.
- Ramps/entrances: Lateral CDNs behind sidewalls feeding trench drains at the apron.
- Planter interfaces: Behind planter walls to capture irrigation leakage before it reaches the garage wall.

 15. MEP Coordination and Sump Design
- Sump sizing: Based on peak groundwater inflow and storm events; include standby capacity and highwater alarms.
- Pump selection: Nonclog impellers, corrosionresistant materials, and redundancy (duty/standby).
- Inlet protection: CDN discharges through filter boxes to prevent textile fibers or fines entering pumps.
- Power and controls: Automatic switchover, generator backup if required by facility criticality.

 16. Health, Safety, and Environmental (HSE)
- Handling: Use proper lifting for rolls; avoid sparks/open flames near stored polymer rolls.
- Confined spaces: Observe ventilation and access protocols in deep basements.
- Environmental: CDN greatly reduces aggregate mining and trucking; packaging can be recycled where programs exist.

 17. Economic Analysis and Total Cost of Ownership
- Material substitution: CDN replaces thick gravel drains, saving excavation, offhaul, and backfill import.
- Schedule gains: Faster installation compresses the critical path on tight urban sites.
- Operational savings: Reduced leakage and controlled inflows lower maintenance and callbacks.
- Value of space: Thinner drainage frees wall/column geometry and increases usable area or eases reinforcement congestion.
- Risk reduction: Consistent, testable factory properties lower uncertainty relative to variable site gravels.

 18. Sustainability and ESG Contributions
- Resource conservation: Replaces quarried aggregates; lower embodied carbon via reduced trucking.
- Stormwater resilience: Enables bluegreen strategies atop garages (plazas/landscapes) by ensuring reliable subgrade drainage.
- Durability: Long service life aligns with circularity; some cores can be recycled after use.
- Thermal and moisture health: By keeping structural concrete drier, CDN indirectly reduces energy used to dehumidify occupied levels.

 19. Case Studies (Illustrative)
 19.1 HighWaterTable Garage, Coastal City
A threelevel basement faced tidal groundwater. A triplanar CDN behind walls and under the slab directed inflows to dual sumps. Postoccupancy monitoring showed dry walls, minimal crack weeping, and a 40% reduction in pump cycling compared with adjacent, older garages using gravel drains.

 19.2 Downtown Tower with BlindSide Shoring
Secant pile shoring left limited access. CDN installed against the piles relieved seepage and protected the preapplied waterproofing. Concrete bonded fully to the membrane, and turnover testing recorded continuous drainage to perimeter collectors with no cold joint leaks.

 19.3 MixedUse Podium with Planters
Landscaped planters above the garage had historically caused damp walls. A retrofit CDN behind planter walls intercepted irrigation leakage and routed it to drains, eliminating efflorescence and paint delamination within one season.

 20. Installation Detailing Playbook
- Perimeters and terminations: Use corrosionresistant termination bars at grade lines; seal continuous beads at the top to prevent fines entry.
- Corners: Preformed inside/outside corner assemblies maintain channel continuity and prevent crushing during backfill.
- Transitions to horizontal: Lap the vertical CDN over the underslab CDN toward flow direction to avoid counterflow steps.
- Penetrations: Wrap columns and pipes with split sleeves; tape laps; flash to waterproofing as per manufacturer details.
- Ramps: Provide stepped or shingled laps so gravity favors flow toward trench drains.

 21. Risk Management
- Design risk: Validate soil gradation and groundwater chemistry; run filtration compatibility checks.
- Construction risk: Protect exposed CDN from prolonged UV before backfill; enforce backfill lift height and compaction limits.
- Operational risk: Ensure accessible cleanouts and redundant sump pumps; integrate leak alarms with building management systems.

 22. Owner’s Operations & Maintenance (O&M)
- Routine inspection: Quarterly checks of sumps, pump function, and discharge lines; annual review of ramp trench drains.
- Cleaning: Vacuum or jetclean collector pipes and sump strainers as needed based on sediment load.
- Monitoring: Log inflow rates after storm events; unusual increases can indicate external plumbing leaks or new groundwater paths.
- Repairs: Localized wall repairs rarely require CDN disturbance; if needed, access through interior chases or exterior excavations with sectional replacement.

 23. Procurement and Specification Guide (Editable Template)
- Core: HDPE geonet, biplanar/triplanar as scheduled; nominal thickness and mass per unit area per drawings.
- Geotextiles: Nonwoven PP/PET, specified mass, permittivity, and AOS matched to site soils.
- Bond strength: Minimum peel value.
- Transmissivity: Minimum value at design load and gradient with reduction factors declared.
- Interface shear: Minimum angle against specified waterproofing and soil.
- Accessories: Edge drains, connectors, termination bars, tapes, and corner pieces.
- Submittals: Product data, factory QA certificates, installation plan, seam/termination details, and O&M manual.
- Qualifications: Manufacturerapproved installers with documented training.
- Mockups: Minimum 10 m² including a corner, a penetration, and a connection to collector pipe.
- QA/QC: Onsite inspection, overlap verification, documentation of discharge tieins, and photo records

 24. Frequently Asked Questions (FAQ)
Q1: Can a CDN replace all granular drains?
Often yes for walls and slabs, provided transmissivity and soil compatibility are verified; some projects still use a thin granular layer at sumps or trenches.

Q2: Will the CDN crush under deep backfill?
Properly selected triplanar cores maintain channels under high stress; design must consider longterm creep.

Q3: How is clogging prevented?
By matching geotextile AOS/permittivity to soil gradation and controlling fines during backfill; cleanouts maintain collectors.

Q4: Does the CDN affect waterproofing adhesion?
No—when detailed correctly. For adhered membranes, the CDN is typically soilside; for blindside, it sits against shoring, not between the membrane and structural concrete.

Q5: What maintenance is required?
Primarily inspection and cleaning of discharge components and pumps; the CDN itself is passive and encapsulated.

 25. Future Outlook
Composite drainage technology is converging with smart infrastructure. Embedded pressure or moisture sensors, conductive tracers for leak mapping, and digital QA records tied to roll IDs will make hidden drainage verifiable through life. Materials will continue to improve creep resistance and recyclability. For underground garages facing climatedriven rainfall extremes and higher water tables, CDNs will remain a firstline defense aligned with resilient design.

 26. Comprehensive Conclusion
A Composite Drainage Net for Underground Garage transforms how basements manage water: it relieves hydrostatic pressure, protects waterproofing, accelerates schedules, conserves resources, and reduces operating risk. By pairing engineered transmissivity with soilmatched filtration, it delivers reliable performance over decades. For owners and designers, the value is straightforward—dry walls, stable slabs, quieter pumps, and fewer callbacks. For contractors, the system is predictable and fast to install. For cities, it supports denser development without sacrificing resilience. In short, CDN is a compact solution to a large underground challenge.

 27. Market Landscape and Regional Practices
- North America: Strong adoption in urban basements where high land values demand compact, predictable drainage. Coordination with sheet waterproofing is common; many owners specify CDNs as standard in ClassA garages.
- Europe: Emphasis on sustainability and renovation of historic districts where excavation limits prohibit bulky gravel drains; green roofs and plazas over garages often include CDN layers.
- AsiaPacific: Rapid highrise development with deep basements and high water tables drives demand; blindside applications against diaphragm walls are widespread.
- Middle East: Desert flashflood dynamics and temperature swings call for robust drainage under podiums and ramps; CDNs help manage irrigation leakage from intensive landscaping.
- Latin America & Africa: Adoption grows with modern landfill and infrastructure standards; in garages, CDNs are increasingly specified for reliability and speed of build.

 28. Sustainability DeepDive for Underground Garages
 28.1 Embodied Carbon and Material Efficiency
Replacing a 200 mm gravel drain with a 6–10 mm CDN eliminates hundreds of kilograms of aggregate per square meter, cutting excavation and trucking. The polymer mass of a CDN is modest and can contain recycled content, particularly in the core.

 28.2 Water Quality and Building Health
By keeping walls dry and joints unpressurized, CDNs deter mold growth in adjacent spaces, maintain indoor air quality, and protect finishes and electrical systems. Reduced efflorescence preserves architectural surfaces and reduces repainting cycles.

 28.3 Circularity and EndofLife
Cores made from HDPE are recyclable in many regions after demolition. Design for disassembly—mechanical terminations and accessible discharge points—supports future recovery.

 28.4 BlueGreen Integration Above Garages
Where garages support plazas or parks, CDNs sit below planting media to balance moisture and prevent saturation loads on slabs, supporting resilient urban drainage without sacrificing amenity space.

 29. Extended Case Studies (SectorSpecific)
 29.1 TransitLinked MixedUse Podium, Southeast Asia
A fourlevel garage beneath a retailoffice podium experienced heavy rain events and seasonal high groundwater. Designers selected a triplanar CDN behind walls and under the raft. Postcompletion audits showed inflows concentrated at sump intakes as planned, with pump cycles reduced thanks to continuous lateral drainage distributing water load evenly.

 29.2 Hospital Campus Garage, Europe
Renovation required drainage reliability without interrupting critical care access. CDN panels were installed in phases behind new shotcrete liners; the lightweight rolls allowed nightshift installation with minimal noise. Patient parking remained open, and warranty inspections confirmed dry walls through two winters.

 29.3 Residential Tower Basement, North America
Historic brick party walls limited excavation. A blindside system with CDN against the party wall and preapplied membrane delivered watertight performance. Moisture sensors embedded at discharge outlets feed a BMS dashboard for early warning, integrating drainage with smart building operations.

 30. Owner Decision Checklist (Quick Reference)
1) Target service life and acceptable risk profile.
2) Groundwater regime (steady, perched, tidal) and chemistry.
3) Backfill depth and stress—need for triplanar core?
4) Soil gradation—geotextile AOS match and clogging risk.
5) Waterproofing type and interface friction strategy.
6) Discharge network capacity, redundancy, and cleanouts.
7) QA/QC plan—documentation, mockups, inspections, and handover data.
8) O&M staffing—who owns sump monitoring and maintenance?
9) Sustainability targets—recycled content, EPDs, takeback options.
10) Future access—can drains be inspected and jetted without demolition?

 31. Final Perspective
Underground garages are unforgiving environments: limited access, high consequence of leaks, and long service lives. A Composite Drainage Net addresses these realities with a small footprint and outsized effect—lower hydrostatic head, protected membranes, and calm, predictable operations. When paired with a sound discharge network and disciplined QA/QC, the CDN becomes invisible—and that is the point. It works quietly behind the wall and beneath the slab, turning a complex water problem into a managed, durable system that allows the rest of the garage to do its job.

In particular, the Durable Composite Drainage Net For Underground Garage, the Lightweight Composite Drainage Net For Underground Garage, and the High Strength Composite Drainage Net For Underground Garage are recognized as advanced solutions that combine strength, adaptability, and reliability to ensure long-term waterproofing protection and efficient drainage performance.
