Durable Composite Drainage Net with Geotextile Lamination: A Comprehensive Guide

Introduction

Drainage systems play a crucial role in civil engineering, construction, and environmental management by preventing water accumulation, soil erosion, and structural damage. Among the various drainage solutions available, Durable Composite Drainage Nets with Geotextile Lamination have emerged as a highly efficient and versatile option. These composite materials combine the benefits of a high-strength drainage core with geotextile filtration layers, ensuring long-term performance in demanding applications.

This guide explores the composition, benefits, applications, installation methods, and performance characteristics of durable composite drainage nets with geotextile lamination.

---

1. Composition and Structure

A composite drainage net with geotextile lamination consists of three primary components:

1.1 Drainage Core

The core is typically made from high-density polyethylene (HDPE) or polypropylene (PP), designed in a three-dimensional structure (e.g., cuspated, dimpled, or mesh-like). This structure provides:

- High void ratio for efficient water flow.

- Compressive strength to withstand heavy loads.

- Chemical resistance against soil contaminants.

1.2 Geotextile Layers

One or both sides of the drainage core are laminated with non-woven or woven geotextiles, which serve multiple functions:

- Filtration: Prevents soil particles from clogging the drainage core.

- Separation: Keeps fine soils from mixing with coarse aggregates.

- Reinforcement: Enhances tensile strength and durability.

1.3 Bonding Technology

The geotextile is securely bonded to the drainage core using:

- Thermal fusion (heat bonding for strong adhesion).

- Needle-punching (mechanical interlocking for durability).

- Adhesive lamination (for specialized applications).

---

2. Key Benefits of Composite Drainage Nets

Composite drainage nets offer several advantages over traditional drainage solutions like gravel or perforated pipes:

2.1 Superior Drainage Performance

- High flow capacity due to the open-core structure.

- Reduced clogging risk thanks to geotextile filtration.

- Faster water removal compared to granular drainage layers.

2.2 Lightweight and Easy to Install

- Reduces labor and transportation costs.

- Flexible and adaptable to various terrains.

- No need for heavy machinery in most cases.

2.3 Long-Term Durability

- Resistant to UV degradation, chemicals, and biological growth.

- Maintains performance under high compressive loads.

- Withstands freeze-thaw cycles and harsh weather conditions.

2.4 Cost-Effective Solution

- Lower material costs compared to gravel-based systems.

- Reduced maintenance requirements.

- Longer service life minimizes replacement needs.

2.5 Environmental Benefits

- Reduces soil erosion and sedimentation.

- Minimizes the need for natural aggregates (gravel).

- Can be recycled or reused in some applications.

---

3. Applications of Composite Drainage Nets

These materials are widely used in civil engineering, construction, landscaping, and environmental projects, including:

3.1 Road and Railway Construction

- Subsurface drainage beneath pavements and tracks.

- Prevents waterlogging and frost heave.

- Extends infrastructure lifespan.

3.2 Retaining Walls and Earthworks

- Relieves hydrostatic pressure behind walls.

- Stabilizes slopes and embankments.

- Prevents soil erosion.

3.3 Green Roofs and Landscaping

- Enhances drainage in rooftop gardens.

- Reduces root zone saturation.

- Improves plant health.

3.4 Landfill and Waste Management

- Leachate collection and gas venting.

- Protects liners from punctures.

- Ensures regulatory compliance.

3.5 Sports Fields and Golf Courses

- Maintains optimal playing conditions.

- Prevents waterlogging and turf damage.

- Reduces maintenance costs.

3.6 Underground Structures (Tunnels, Basements)

- Controls groundwater infiltration.

- Prevents structural damage.

- Improves waterproofing efficiency.

---

4. Installation Guidelines

Proper installation ensures optimal performance. Key steps include:

4.1 Site Preparation

- Clear debris, rocks, and sharp objects.

- Compact and level the subgrade.

- Ensure proper slope for water flow.

4.2 Geotextile Placement

- If using separate geotextile, lay it first.

- Overlap seams by at least 12 inches (30 cm).

4.3 Drainage Net Deployment

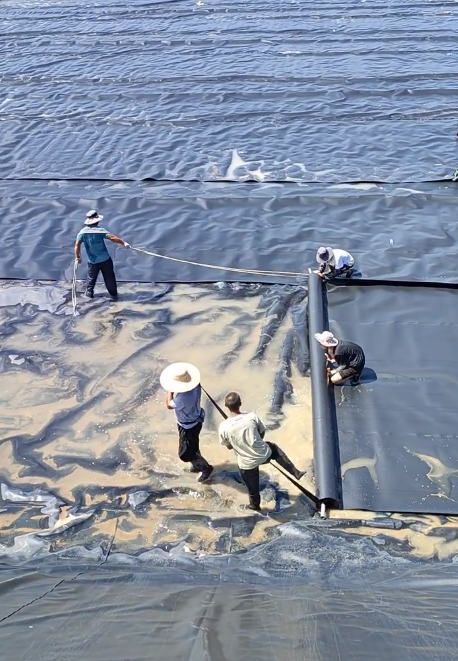

- Unroll the composite net over the prepared surface.

- Ensure geotextile side faces the soil (if single-sided).

- Secure edges with stakes or adhesive.

4.4 Backfilling and Protection

- Cover with granular material (e.g., sand or gravel).

- Avoid heavy machinery directly on the net.

- Inspect for damage before final covering.

4.5 Connection to Outlet Systems

- Direct water to drainage pipes or collection points.

- Use perforated pipes for enhanced efficiency.

---

5. Performance Testing and Standards

Composite drainage nets must meet industry standards, including:

- ASTM D4716 (Flow Capacity Test)

- ASTM D6241 (Puncture Resistance)

- ISO 12958 (Transmissivity Test)

- EN 13252 (Geotextile Durability)

Key performance metrics:

- Hydraulic conductivity (>0.01 cm/s).

- Compressive strength (>100 kPa).

- Tensile strength (>10 kN/m).

---

6. Maintenance and Longevity

- Inspect periodically for clogging or damage.

- Clean outlet points to prevent blockages.

- Replace damaged sections if necessary.

With proper installation, these systems can last 20-50 years depending on environmental conditions.

---

Conclusion

Durable composite drainage nets with geotextile lamination provide an efficient, cost-effective, and sustainable solution for modern drainage challenges. Their high flow capacity, durability, and ease of installation make them ideal for infrastructure, environmental, and construction projects.

By understanding their composition, benefits, and installation techniques, engineers and contractors can optimize drainage performance while reducing long-term maintenance costs. As technology advances, these materials will continue to play a vital role in water management and soil stabilization worldwide.
