High-Strength Geocell Product Introduction

 1. Introduction to High-Strength Geocell

High-strength geocell is an advanced geosynthetic material widely used in civil engineering, construction, and environmental protection projects. Made from high-performance polymers such as high-density polyethylene (HDPE) or polyester, this three-dimensional cellular confinement system provides exceptional reinforcement, stabilization, and load-bearing capacity. Compared to traditional geocells, high-strength geocells offer superior tensile strength, durability, and resistance to environmental degradation, making them ideal for demanding applications like road construction, slope protection, and soil stabilization.

This product introduction will cover the key features, benefits, applications, installation methods, and technical specifications of high-strength geocells in detail.

---

 2. Key Features of High-Strength Geocell

 2.1 Enhanced Tensile Strength

High-strength geocells are engineered to withstand extreme loads and stresses. With tensile strengths ranging from 20 kN/m to 50 kN/m or higher, they provide superior reinforcement compared to conventional geocells. This makes them suitable for heavy-duty applications such as highways, railways, and airport runways.

 2.2 Superior Durability & Longevity

The material composition of high-strength geocells ensures resistance to:

- UV radiation – Prevents degradation under prolonged sunlight exposure.

- Chemical corrosion – Resistant to acids, alkalis, and other harsh substances.

- Temperature fluctuations – Performs well in both extreme heat and cold (-40°C to +80°C).

 2.3 Flexible & Modular Design

The honeycomb-like structure allows for easy expansion and customization to fit various project requirements. The cells can be filled with soil, gravel, or concrete, providing adaptable solutions for different terrains.

 2.4 Eco-Friendly & Sustainable

High-strength geocells reduce the need for excessive excavation and natural resource consumption. They promote vegetation growth in slope protection projects, contributing to environmental sustainability.

---

 3. Applications of High-Strength Geocell

 3.1 Road & Pavement Reinforcement

- Highways & Expressways – Enhances load distribution, reducing rutting and cracking.

- Railway Ballast Stabilization – Prevents track deformation under heavy train loads.

- Parking Lots & Airport Runways – Provides a stable foundation for long-term use.

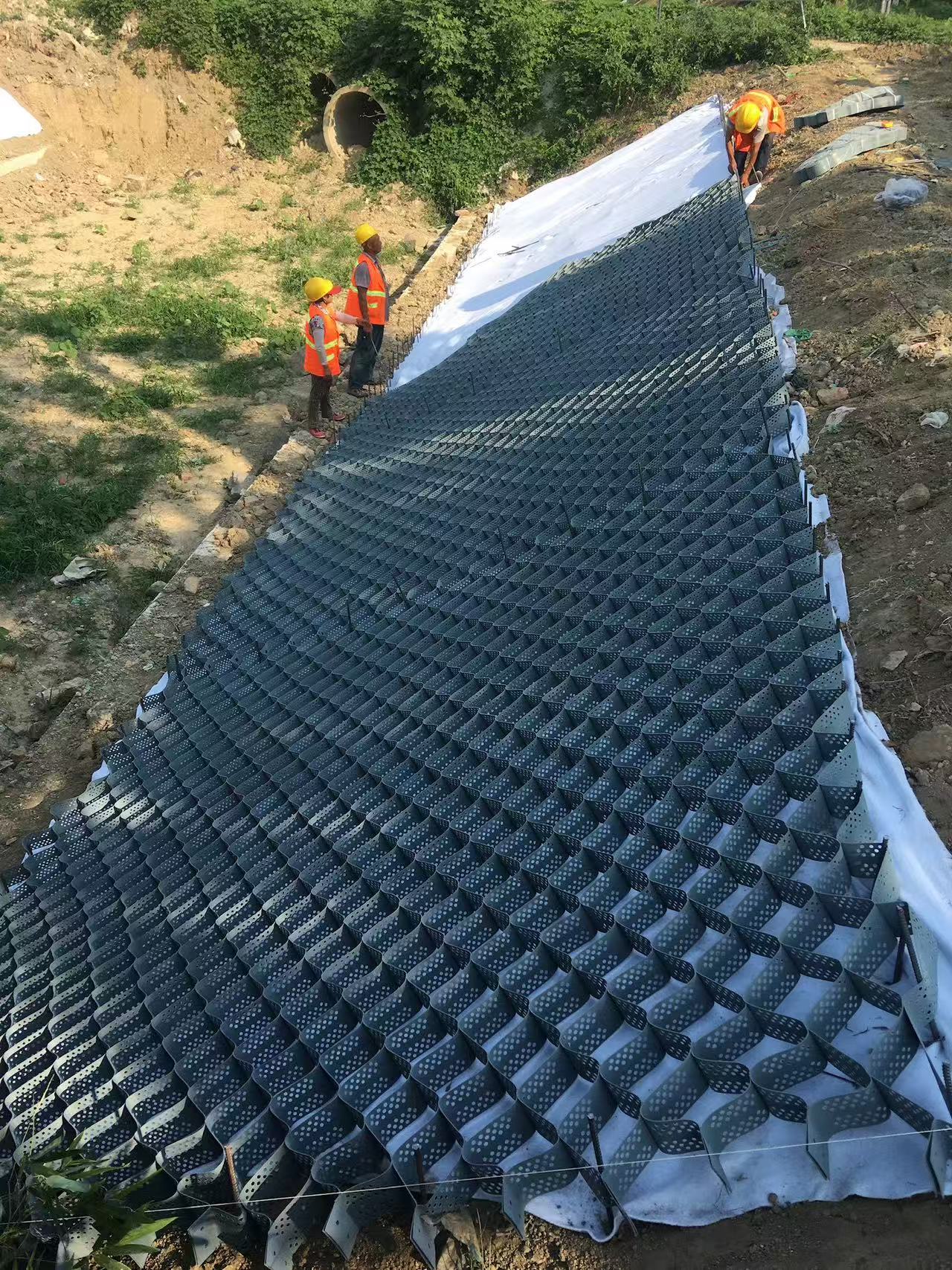

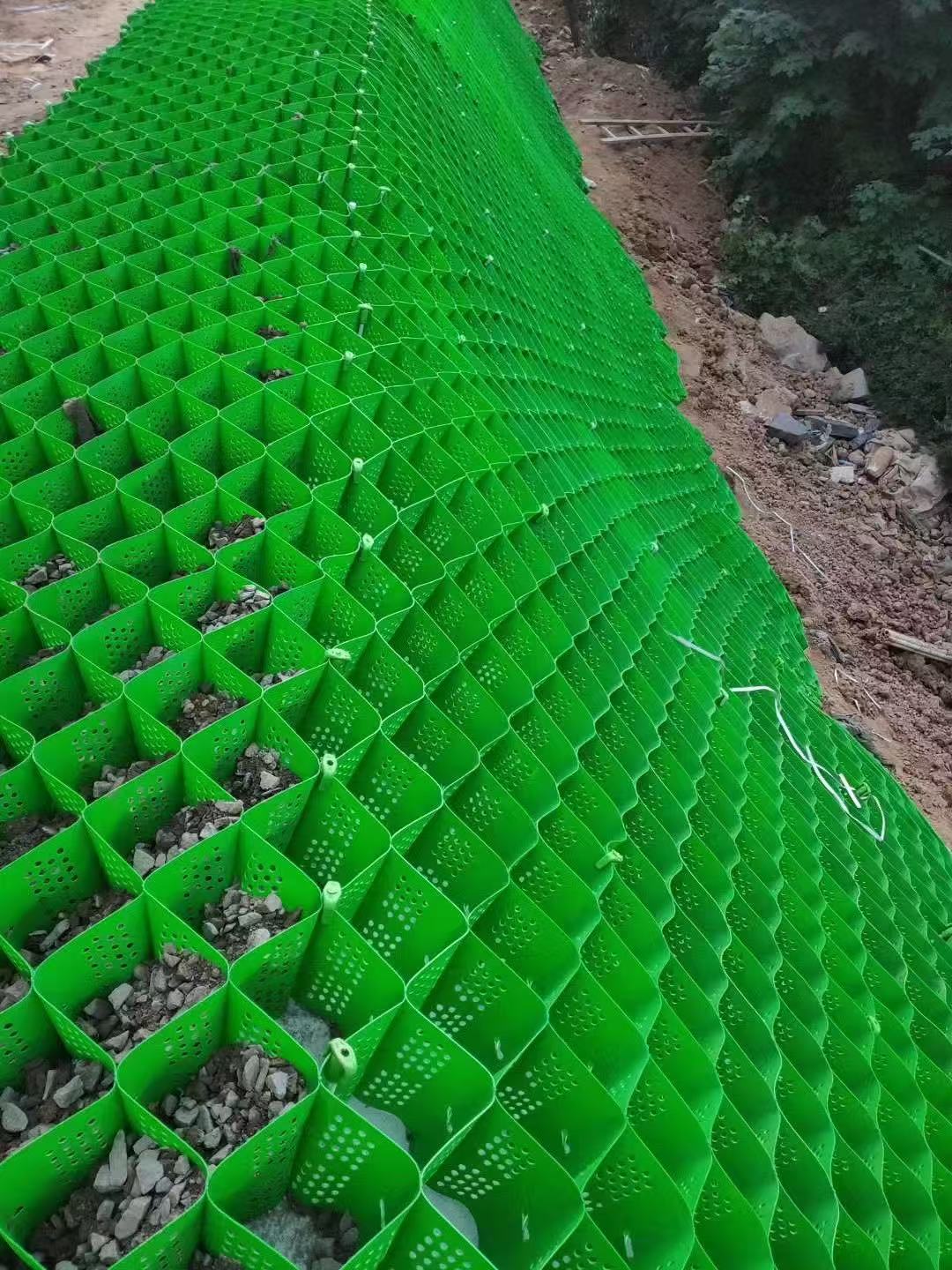

 3.2 Slope & Erosion Control

- Retaining Walls – Reinforces steep slopes, preventing landslides.

- Riverbank Protection – Reduces soil erosion caused by water flow.

- Mining & Quarry Rehabilitation – Stabilizes disturbed land and promotes vegetation regrowth.

 3.3 Soil Stabilization & Foundation Support

- Soft Soil Improvement – Increases bearing capacity in weak subgrades.

- Embankment Construction – Prevents lateral spreading under heavy loads.

- Landfill & Waste Containment – Reinforces containment structures to prevent subsidence.

---

 4. Installation Process of High-Strength Geocell

 4.1 Site Preparation

- Clear the area of debris and vegetation.

- Level and compact the subgrade to ensure a stable base.

 4.2 Geocell Deployment

- Unfold the geocell panels and anchor them using stakes or pins.

- Expand the cells to the desired height (typically 100mm to 300mm).

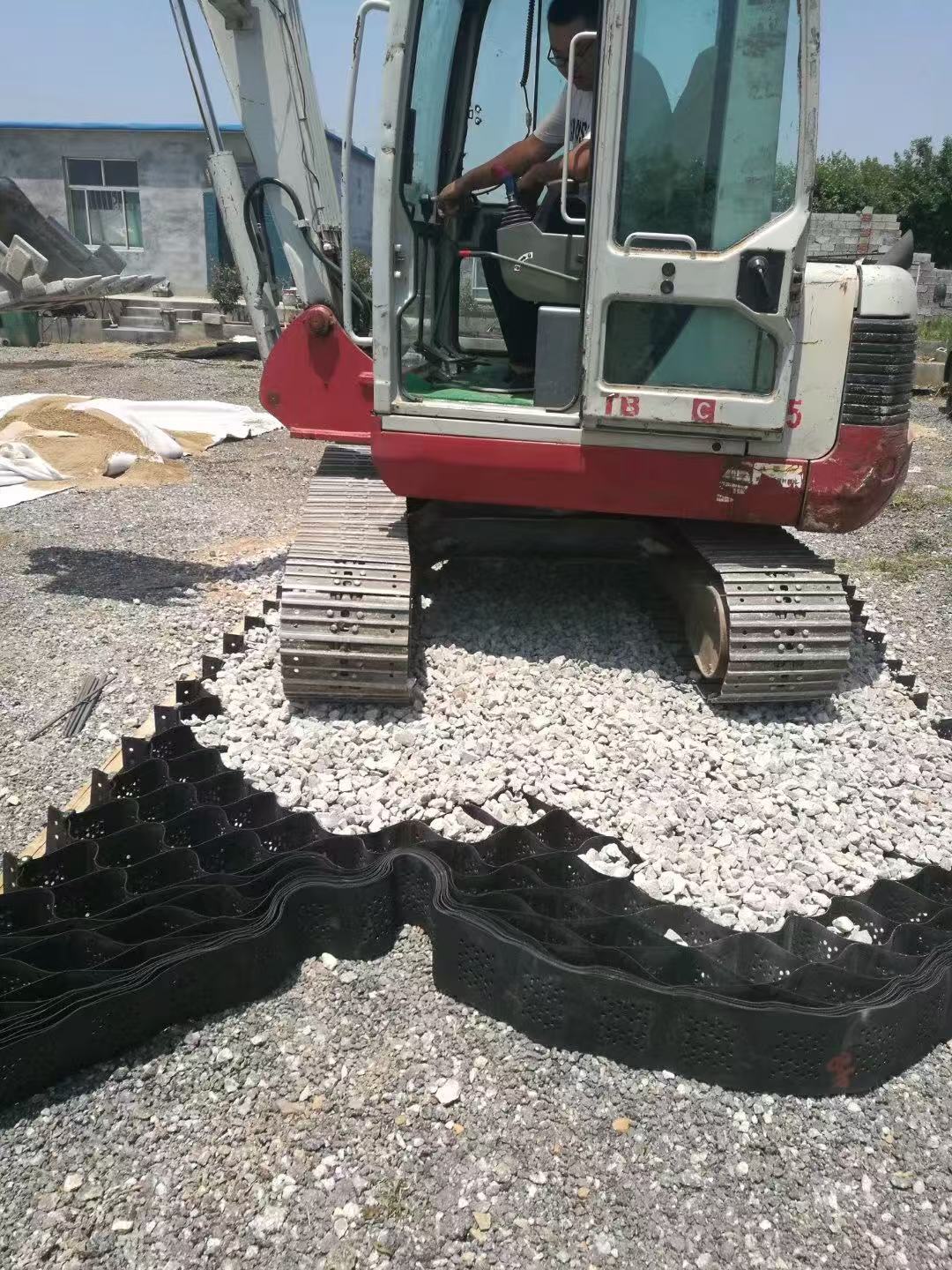

 4.3 Filling the Cells

- Fill with locally available materials (soil, gravel, or concrete).

- Compact the infill material to maximize load-bearing capacity.

 4.4 Final Compaction & Surface Finishing

- Apply a final compaction layer for uniformity.

- Add a wearing course (asphalt or concrete) for paved surfaces.

---

 5. Technical Specifications

| Property               | Value Range |

|----------------------------|----------------|

| Material               | HDPE / Polyester |

| Cell Height            | 100mm – 300mm |

| Tensile Strength       | 20 kN/m – 50 kN/m |

| Aperture Size          | 200mm – 400mm |

| UV Resistance          | ≥ 10 years |

| Temperature Range      | -40°C to +80°C |

---

 6. Advantages Over Traditional Methods

- Cost-Effective – Reduces material and labor costs compared to concrete or steel reinforcement.

- Rapid Installation – Faster deployment than conventional techniques.

- Low Maintenance – Long-lasting performance with minimal upkeep.

- Versatility – Adaptable to various terrains and project requirements.

---

 7. Conclusion

High-strength geocell is a revolutionary geosynthetic solution that enhances infrastructure durability, stability, and sustainability. Its superior mechanical properties, ease of installation, and wide range of applications make it an indispensable material in modern engineering projects.

For projects requiring long-term performance under heavy loads, high-strength geocell provides an efficient, eco-friendly, and cost-effective alternative to traditional reinforcement methods.
