 Filtration Geotextile Fabric: Comprehensive Product Introduction

 Introduction
In modern civil engineering, water management and soil stabilization are two of the most critical challenges. Without effective solutions, erosion, clogging, and structural instability can compromise infrastructure and the environment. Filtration geotextile fabrics have emerged as a cornerstone technology in addressing these challenges. These permeable fabrics, engineered from synthetic or natural fibers, allow water to flow while retaining soil particles, thus performing the essential dual functions of f...

 1. Definition and Importance

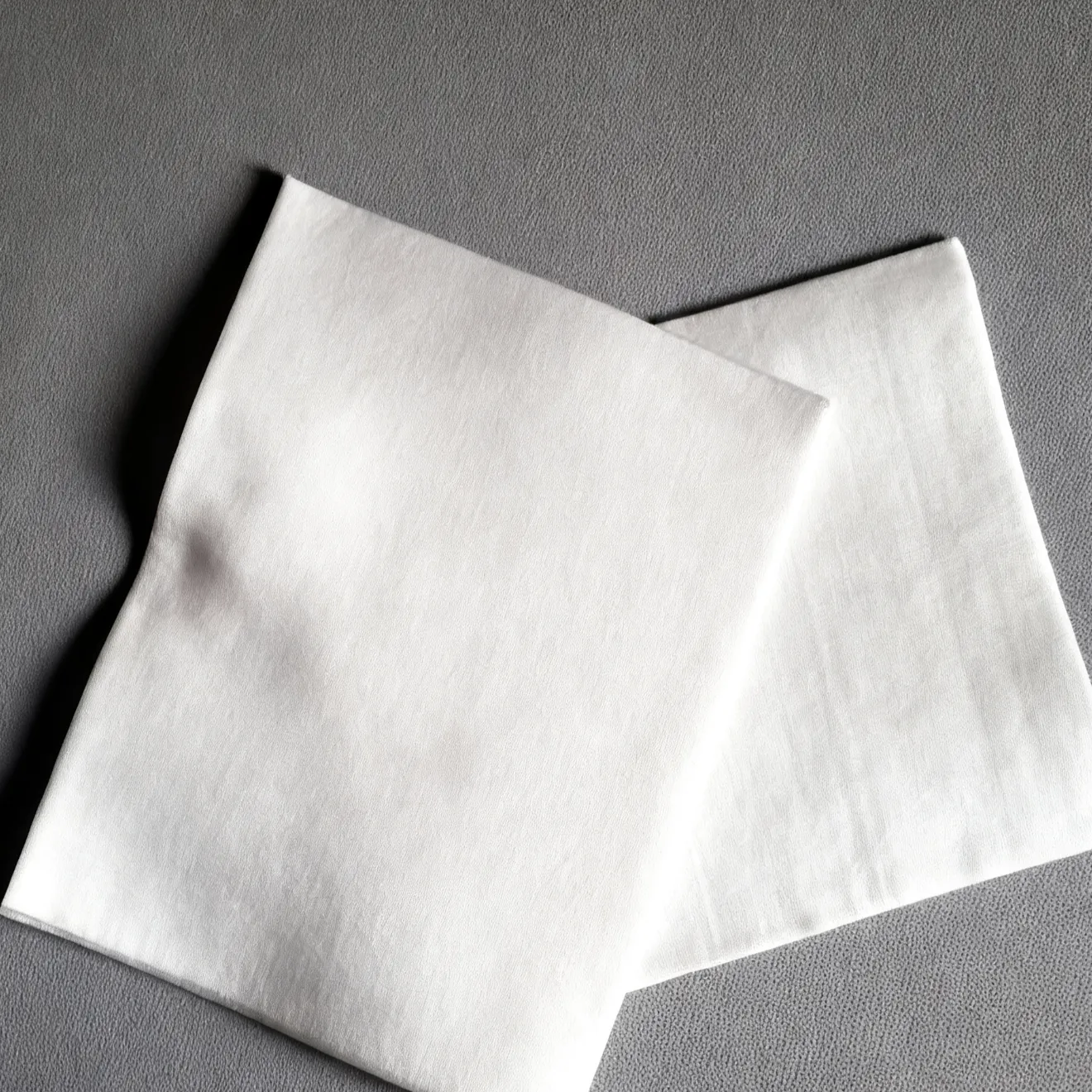

Filtration geotextile fabrics are permeable textile materials used in geotechnical engineering applications to separate, filter, reinforce, protect, or drain soils. Their primary function is to allow controlled water movement through soil layers while preventing soil particle migration. They are vital in applications such as retaining walls, drainage systems, embankments, riverbanks, coastal works, and landfills. Without geotextile filtration, soils may wash out, drainage layers may clog, and structural f...

 2. Material Composition
Filtration geotextile fabrics are manufactured using various polymers and fibers:
- Polypropylene (PP): Lightweight, chemically inert, and resistant to biological degradation, making it the most common material for nonwoven fabrics.
- Polyester (PET): Provides excellent tensile strength and creep resistance, making it ideal for reinforcement applications.
- Polyethylene (PE): Offers flexibility and chemical resistance but is less widely used than PP and PET.
- Natural Fibers: Jute, coir, and cotton are occasionally used in biodegradable geotextiles for temporary filtration.
- Composite Fabrics: Multi-layer fabrics combining woven and nonwoven geotextiles to achieve both strength and filtration efficiency.

 3. Manufacturing Processes
Filtration geotextile fabrics are produced using several methods:
1. Nonwoven Needle-Punched Fabrics: Randomly oriented fibers bonded mechanically, providing excellent permeability and filtration properties.
2. Woven Geotextiles: Manufactured by weaving polymer yarns into strong fabrics, offering high tensile strength and soil stabilization capacity.
3. Knitted Fabrics: Less common but used in applications requiring flexibility and adaptability.
4. Thermally Bonded Nonwovens: Fibers bonded through heat, offering high uniformity and stability.
5. Composite Fabrics: Layered systems designed to combine durability with superior filtration functions.

 4. Key Functions
Filtration geotextile fabrics perform multiple critical functions:
- Filtration: Allow water flow while retaining soil particles, preventing erosion and clogging.
- Separation: Prevent intermixing of different soil layers and drainage aggregates.
- Reinforcement: Increase shear strength of soils and improve stability of structures.
- Drainage: Provide pathways for water movement within soil structures, reducing pore pressure.
- Protection: Safeguard geomembranes or other layers from puncture and mechanical damage.

 5. Applications of Filtration Geotextile Fabrics
Filtration geotextile fabrics are used across a wide range of civil engineering, environmental, and construction projects:
- Drainage Systems: Act as filters in subsurface drains, preventing soil particle migration while allowing water flow.
- Retaining Walls: Prevent soil loss through drainage layers behind retaining walls.
- Road Construction: Maintain separation between subgrade soils and aggregates, ensuring long-term stability.
- Riverbanks and Canals: Prevent erosion and scour while maintaining hydraulic performance.
- Coastal Engineering: Protect dunes, seawalls, and embankments from wave action and tides.
- Landfills: Serve as protective and filtration layers in leachate collection and cover systems.
- Agriculture: Improve irrigation efficiency and prevent soil clogging in drainage channels.
- Sports Fields and Parks: Enhance drainage performance in recreational grounds.

 6. Design Considerations
Designing effective filtration geotextile systems requires evaluation of several factors:
1. Soil Type: Grain size distribution determines the required opening size of geotextiles.
2. Hydraulic Conditions: Flow rates, gradients, and pressures affect permeability specifications.
3. Load Requirements: Reinforcement and protection roles must be considered in addition to filtration.
4. Clogging Potential: Long-term clogging risks must be minimized by selecting suitable nonwoven or composite fabrics.
5. Longevity: Permanent applications require UV- and chemical-resistant synthetic fabrics, while temporary projects may use biodegradable fibers.
6. Installation Damage: Survivability ratings must account for expected mechanical stresses during construction.

 7. Installation Procedures
Proper installation ensures functionality and longevity:
- Subgrade Preparation: Clear debris, smooth surfaces, and compact soils before installation.
- Fabric Deployment: Roll geotextiles onto prepared surfaces, ensuring overlaps of 30–60 cm depending on hydraulic gradients.
- Anchorage: Secure fabrics using pins, staples, or anchor trenches.
- Aggregate Placement: Carefully place and compact aggregates to avoid puncturing the fabric.
- Protection from UV Exposure: Cover geotextiles quickly to prevent sunlight degradation.
- Inspection: Monitor overlaps, seams, and anchoring during installation to ensure quality control.

 8. Testing and Quality Control
Filtration geotextile fabrics are tested according to international standards:
- Tensile Strength (ASTM D4595): Measures resistance to pulling forces.
- Puncture Resistance (ASTM D6241): Assesses durability against sharp objects and aggregate placement.
- Permittivity (ASTM D4491): Indicates water flow rate through the fabric.
- Apparent Opening Size (AOS, ASTM D4751): Defines pore size distribution for soil retention.
- UV Resistance: Evaluates durability during sunlight exposure.
- Survivability Classification: Categorizes fabrics based on expected installation and service stresses.
- Clogging Resistance: Tested through long-term hydraulic experiments to ensure reliable performance.

 9. Advantages of Filtration Geotextile Fabrics
- Enhanced Drainage: Maintain water movement while preventing soil migration.
- Structural Stability: Prevents erosion and ensures long-term integrity of civil structures.
- Cost Efficiency: Reduces aggregate requirements and maintenance costs.
- Versatility: Applicable in roadways, drainage, coastal works, landfills, and agriculture.
- Durability: Resistant to biological, chemical, and environmental degradation.
- Sustainability: Supports eco-friendly designs and use of recycled aggregates.

 10. Limitations and Challenges
- Installation Sensitivity: Wrinkles, tears, or insufficient overlaps reduce effectiveness.
- Clogging Risk: Fine soils may block pores, reducing permeability over time.
- UV Degradation: Fabrics exposed to sunlight deteriorate and must be promptly covered.
- Cost Concerns: High-performance fabrics increase upfront expenses.
- Design Complexity: Requires geotechnical expertise to select appropriate specifications.

 11. Case Studies
 Case Study 1: Highway Drainage in the United States
Filtration geotextiles were installed beneath roadways in clayey soils to facilitate subsurface drainage. The fabrics prevented soil clogging of drainage pipes, reducing maintenance by 70%.

 Case Study 2: Coastal Protection in the Netherlands
Nonwoven geotextiles were used under riprap along seawalls to prevent soil erosion while allowing tidal water flow. The system provided long-term stability against storm surges.

 Case Study 3: Landfill in Germany
Geotextiles served as protective and filtration layers above geomembranes, preventing soil erosion and safeguarding leachate collection systems.

 Case Study 4: Agricultural Fields in India
Biodegradable jute geotextiles improved irrigation channel drainage while temporarily preventing soil clogging. Farmers reported improved water efficiency and crop yields.

 Case Study 5: Sports Field in the UK
Filtration fabrics installed under turf improved field drainage, reducing waterlogging and ensuring year-round usability.

 12. Economic Benefits
Filtration geotextiles provide significant cost savings:
- Reduced Maintenance: Prevent clogging and erosion, lowering repair and cleaning costs.
- Extended Service Life: Infrastructure lasts longer due to stable drainage systems.
- Lower Material Costs: Reduce aggregate requirements in drainage and road layers.
- Return on Investment: Savings on maintenance and materials quickly outweigh initial geotextile costs.
- Improved Productivity: Reliable drainage ensures uninterrupted infrastructure and agricultural output.

 13. Regional Practices
- North America: Widely used in road drainage, landfills, and coastal protection, guided by ASTM standards.
- Europe: Emphasis on environmental protection and sustainable geotextile applications in waterways and landfills.
- Asia-Pacific: Rapid adoption in infrastructure and flood management projects, especially in China and India.
- Middle East: Applied in irrigation canals, desert soil stabilization, and road drainage systems.
- Africa: Used in rural roads, agriculture, and erosion control in river valleys.
- Latin America: Applied in mining, hydropower, and flood defense projects.

 14. Sustainability and Environmental Impact
- Soil Conservation: Prevents erosion and maintains soil fertility in agricultural lands.
- Water Quality Protection: Reduces sedimentation and turbidity in rivers, lakes, and reservoirs.
- Resource Efficiency: Minimizes the need for natural stone and sand in filtration systems.
- Recyclable Materials: Increasing use of recycled polymers in geotextile manufacturing.
- Climate Adaptation: Enhances resilience of infrastructure against extreme rainfall and flooding events.



 15. Technological Innovations
- Smart Geotextiles: Embedded sensors monitor water flow, stress, and clogging in real time.
- Nanotechnology Additives: Enhance strength, filtration capacity, and resistance to clogging.
- Biodegradable Solutions: Use of coir, jute, and other fibers for temporary eco-friendly filtration.
- Hybrid Fabrics: Combining woven and nonwoven fabrics to achieve multifunctional performance.
- Advanced Testing Tools: Laboratory simulations of long-term hydraulic conditions improve design accuracy.

 16. Historical Development
The origins of filtration geotextiles date back to the 1960s, when synthetic fabrics were first applied in road drainage systems. Early projects demonstrated their ability to prevent soil clogging while maintaining water flow. By the 1980s, standardized testing and specifications emerged, promoting widespread adoption. In the 2000s, biodegradable options gained interest in environmental projects. Today, filtration geotextiles are essential in nearly every infrastructure project worldwide.

 17. Disaster Mitigation Applications
- Flood Management: Improve drainage systems to prevent urban flooding during storms.
- Landslide Prevention: Maintain slope drainage, reducing pore pressure and slope failures.
- Earthquake Zones: Reinforce soil and drainage systems in seismically active areas.
- Emergency Infrastructure: Rapid deployment in disaster recovery to restore drainage and prevent erosion.
- Coastal Storm Protection: Used under riprap and geotubes to defend against storm surges and high waves.

 18. Extended Frequently Asked Questions (FAQs)
Q1: Can filtration geotextiles replace natural sand filters?
Yes, they often replace sand filters by offering more consistent and durable filtration performance.

Q2: Do geotextiles clog over time?
If properly designed and selected based on soil conditions, geotextiles resist clogging and maintain long-term performance.

Q3: Are geotextiles environmentally friendly?
Yes, they are inert and non-toxic, with growing use of recycled and biodegradable materials.

Q4: Can geotextiles be used underwater?
Yes, many geotextiles are designed for submerged applications such as canals, rivers, and coastal defenses.

Q5: What is the service life of filtration geotextiles?
Synthetic fabrics can last decades when properly protected from UV and mechanical damage.



 19. Extended Glossary
- Apparent Opening Size (AOS): Indicator of pore size controlling soil retention capacity.
- Clogging: Reduction in permeability due to soil or biological accumulation.
- Permittivity: Water flow rate through a fabric under a hydraulic gradient.
- Separation Function: Prevention of soil-aggregate mixing.
- Reinforcement Function: Enhancement of soil strength by including geotextiles.
- Survivability Rating: Classification of geotextiles based on installation damage resistance.
- Nonwoven Geotextile: Fabric made of randomly oriented fibers bonded mechanically or thermally.
- Hybrid Geotextile: Combination of woven and nonwoven layers for multifunctional performance.

 20. Global Significance
Filtration geotextiles have become indispensable worldwide. In developed regions, they extend infrastructure life and reduce maintenance costs. In developing regions, they enable cost-effective solutions for flood defense, rural roads, and agricultural drainage. Their integration into sustainability programs and climate adaptation strategies underscores their global relevance in the 21st century.

 21. Comprehensive Conclusion
Filtration geotextile fabrics combine advanced engineering with environmental responsibility. By performing critical functions of filtration, separation, and drainage, they safeguard infrastructure, enhance sustainability, and protect natural resources. Their versatility makes them suitable for highways, landfills, coastal projects, agriculture, and disaster mitigation. As innovation advances and demand for sustainable infrastructure grows, filtration geotextiles will continue to play a central role in bui...

 22. Performance Metrics
The success of filtration geotextile fabrics can be measured through several metrics:
- Hydraulic Performance: Long-term flow rates compared to initial design capacity.
- Soil Retention Efficiency: Percentage of soil particles prevented from passing through the fabric.
- Clogging Resistance: Rate of permeability loss over extended service life.
- Durability: Resistance to installation stresses, UV exposure, and chemical attack.
- Cost Effectiveness: Comparison of lifecycle costs with alternative filtration methods such as sand filters.
- Environmental Benefits: Reduction in sedimentation, water pollution, and aggregate consumption.

 23. Education and Workforce Development
The growing adoption of geotextiles requires specialized skills and knowledge:
- University Curricula: Civil and geotechnical engineering programs include geosynthetics design and applications.
- Installer Training: Contractors are trained in handling, deploying, and anchoring fabrics without damage.
- Certification Programs: Professional certifications validate knowledge of standards and installation practices.
- Knowledge Sharing: Global conferences, webinars, and journals disseminate new research and field experiences.

 24. Policies and Standards
Filtration geotextiles are governed by international and national standards:
- ASTM Standards: Define testing methods for strength, filtration, permittivity, and puncture resistance.
- ISO Standards: Provide international benchmarks for geotextile performance and manufacturing quality.
- EN Standards (Europe): Establish requirements for geotextiles in drainage and filtration applications.
- National Guidelines: Many countries issue codes for use in roads, landfills, and water projects.
- Environmental Regulations: Mandate erosion and sediment control practices that often specify geotextile use.

 25. Market Outlook
The global market for filtration geotextiles continues to expand:
- Market Size: Valued at over USD 7 billion, with a projected CAGR of 8–10% in the next decade.
- Regional Demand: Asia-Pacific dominates due to infrastructure expansion, while North America and Europe emphasize sustainability.
- Key Players: Companies such as TenCate Geosynthetics, Fibertex, Huesker, and Solmax lead global production.
- Emerging Trends: Increased use of recycled polymers, biodegradable fibers, and smart geotextiles with embedded sensors.
- Future Opportunities: Climate adaptation projects and green infrastructure will drive demand worldwide.

 26. Integration with Green Infrastructure
Filtration geotextiles play a key role in sustainable urban development:
- Permeable Pavements: Prevent soil migration while supporting stormwater infiltration.
- Rain Gardens: Enhance drainage while stabilizing soils in urban landscapes.
- Green Roofs: Act as filter layers, allowing water flow but retaining growth media.
- Urban Parks: Stabilize soil and prevent erosion in recreational areas.
- Sustainable Drainage Systems (SuDS): Improve water management in flood-prone urban environments

 27. Extended Case Studies
 Flood Protection in Thailand
Geotextiles were applied in drainage systems to prevent clogging during monsoon floods, protecting urban infrastructure.

 Agricultural Drainage in Egypt
Nonwoven geotextiles improved irrigation canal performance, preventing siltation and increasing water availability for crops.

 Railway in Russia
Filtration geotextiles were used under ballast to prevent soil migration, extending service life of high-speed rail networks.

 Hydropower Project in Brazil
Geotextiles stabilized drainage channels, preventing erosion and sedimentation around critical energy infrastructure.

 28. Broader Significance
Filtration geotextiles highlight the intersection of engineering, sustainability, and resilience. They enable societies to manage water resources effectively, protect soil, and safeguard infrastructure. Their adoption supports climate adaptation strategies, reduces disaster risks, and fosters economic development. By preventing erosion, clogging, and waterlogging, they contribute to food security, urban resilience, and sustainable infrastructure.

 29. Future Outlook
The future of filtration geotextiles is defined by innovation and sustainability. Smart fabrics embedded with sensors will provide real-time monitoring of filtration performance. Biodegradable and recyclable options will dominate eco-sensitive applications. Integration into climate adaptation projects will increase demand. As urbanization accelerates and climate challenges intensify, filtration geotextiles will remain indispensable to resilient and sustainable infrastructure worldwide.

 30. Expanded Conclusion
Filtration geotextile fabrics are essential components of modern civil engineering and environmental management. Their ability to filter water, retain soils, and provide stability makes them invaluable in roads, landfills, coastal works, and agriculture. Beyond technical benefits, they deliver cost savings, support sustainability, and protect communities from environmental hazards. With ongoing innovation and global adoption, filtration geotextiles will continue to expand their role as critical enablers o...

 31. Role in Disaster Resilience
Filtration geotextiles strengthen disaster preparedness and recovery:
- Urban Flood Control: Installed in stormwater systems to prevent clogging and flooding during extreme rainfall.
- Landslide Mitigation: Maintain slope drainage and reduce pore pressure that can trigger landslides.
- Coastal Storm Defense: Protect seawalls, levees, and embankments from erosion caused by hurricanes and typhoons.
- Post-Disaster Recovery: Quickly deployed to stabilize soils and drainage systems after earthquakes or floods.
- Drought Adaptation: Improve efficiency of irrigation systems, conserving water during prolonged droughts.

 32. Technological Breakthroughs
The field of geotextiles is advancing rapidly with innovations:
- IoT-Enabled Monitoring: Smart geotextiles equipped with sensors provide real-time data on water flow and clogging.
- Graphene-Enhanced Fabrics: Increase strength, conductivity, and durability for critical applications.
- Self-Cleaning Surfaces: Nanocoatings reduce clogging and extend service life.
- Recyclable Geotextiles: Products designed for recycling at end-of-life to reduce environmental footprint.
- 3D Composite Fabrics: Combine layers for multifunctional performance in filtration, separation, and reinforcement.

 33. Sustainability Impacts
Filtration geotextiles promote sustainability in multiple ways:
- Reduced Aggregate Use: Replace natural sand and gravel in drainage systems, conserving resources.
- Lower Carbon Emissions: Reduce emissions linked to quarrying, transporting, and placing natural materials.
- Biodiversity Protection: Reduce sedimentation and turbidity, protecting aquatic habitats.
- Support for Renewable Energy: Applied in wind farms, solar plants, and hydropower projects to stabilize soils and drainage systems.
- Alignment with SDGs: Contribute to United Nations Sustainable Development Goals for clean water, resilient infrastructure, and climate action.

 34. Community Benefits
Communities benefit directly from filtration geotextile applications:
- Safer Roads and Railways: Reliable drainage prevents failures and accidents.
- Resilient Housing Areas: Geotextiles protect urban slopes and drainage, reducing landslide and flood risks.
- Agricultural Productivity: Efficient water management supports higher yields and stable food supply.
- Employment Opportunities: Manufacturing, installation, and maintenance of geotextiles generate jobs.
- Public Awareness: Demonstrates how engineering solutions can enhance sustainability and resilience.

 35. Societal Impact
Beyond engineering and economics, geotextiles shape societal outcomes:
- Improved Connectivity: Stable roads and transport systems enhance mobility and trade.
- Health Benefits: Clean water and reduced flooding improve public health.
- Education Access: Reliable roads and infrastructure enable consistent access to schools.
- Disaster Preparedness: Communities are safer and more resilient against climate extremes.
- Global Collaboration: Knowledge-sharing fosters innovation and sustainable practices worldwide.

 36. Final Reflections
Filtration geotextile fabrics symbolize the integration of advanced material science with sustainable engineering practices. Their widespread use in drainage, erosion control, and water management demonstrates their critical role in global development. As technology evolves, their capabilities will expand further, enabling smarter, greener, and more resilient infrastructure systems. Filtration geotextiles are not just construction materials—they are essential building blocks of sustainable societies.

 37. Future Outlook and Global Role
The global demand for filtration geotextiles will continue to rise as infrastructure expands and climate pressures intensify. Urbanization requires resilient drainage systems to handle stormwater surges, while rural regions need affordable solutions for roads and irrigation. Filtration geotextiles meet both demands, offering durable, cost-effective, and environmentally friendly solutions. Future developments will emphasize biodegradable options for temporary projects, recyclable polymers for permanent syste...

 38. Expanded Conclusion
Filtration geotextile fabrics are more than passive filters—they are active enablers of sustainable infrastructure. By combining hydraulic performance, soil retention, and durability, they ensure long-lasting efficiency in roads, railways, landfills, coastal defenses, and agricultural systems. Their versatility allows them to be tailored to both developed and developing regions, providing cost-effective, eco-friendly, and technically advanced solutions. As innovations in nanotechnology, smart materials, ...

 39. Closing Perspective
The evolution of filtration geotextile fabrics highlights the growing importance of integrating engineering with sustainability. Their applications in infrastructure, agriculture, and environmental protection prove their versatility and necessity. As the world continues to face challenges such as climate change, population growth, and limited resources, the demand for reliable, long-lasting, and eco-friendly solutions will expand. Filtration geotextiles stand ready to meet these challenges, ensuring resili...

Specifically, modern solutions such as Permeable Filtration Geotextile Fabric, Durable Filtration Geotextile Fabric, and Nonwoven Filtration Geotextile Fabric are widely adopted in drainage and erosion control systems for their efficiency and reliability.
