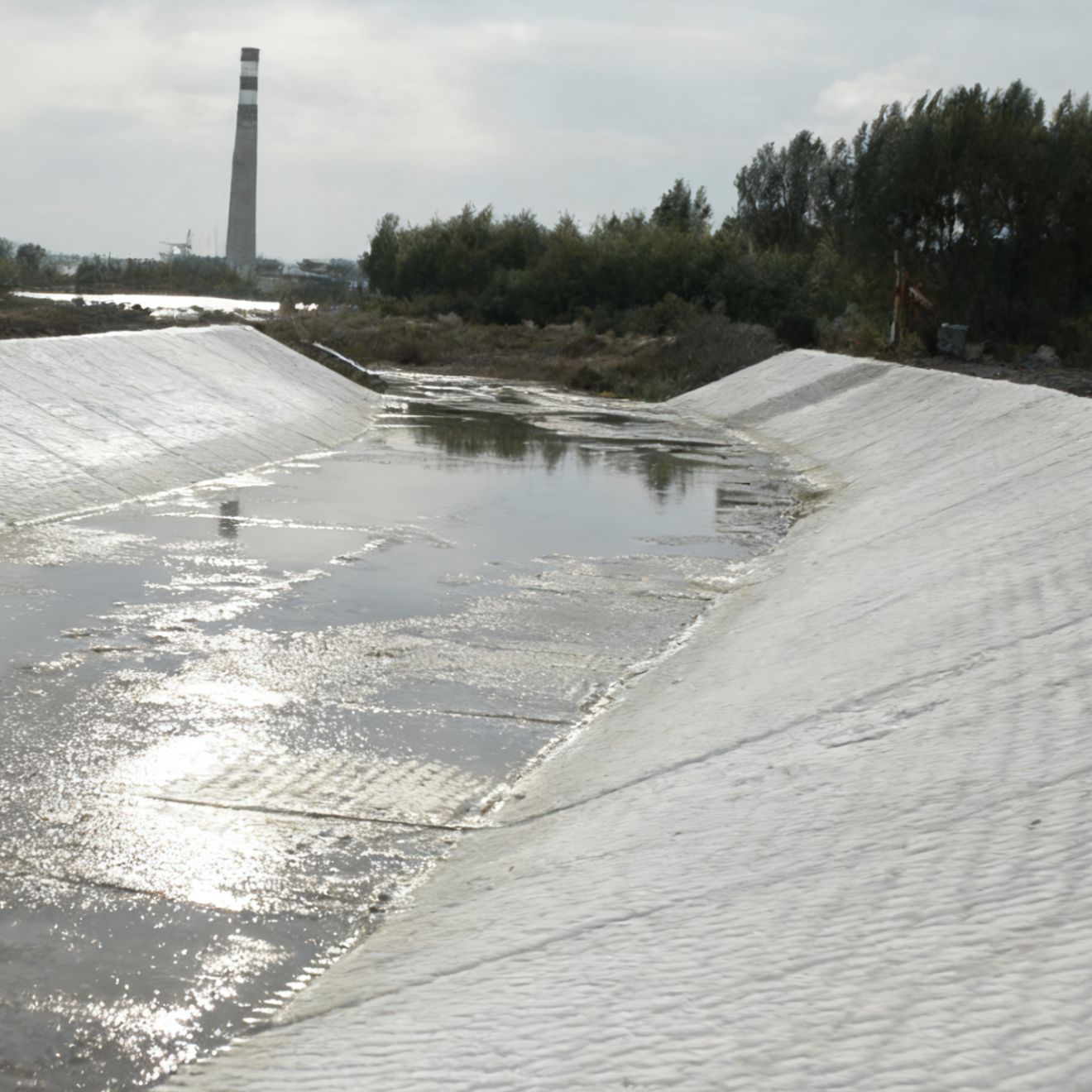

Permeable Filtration Geotextile Fabric High Flow Rate

2025-10-10 04:10:28

Permeable Filtration Geotextile Fabric with High Flow Rate: A Comprehensive Technical Overview

Introduction to Geotextile Filtration Fabrics

Permeable filtration geotextile fabrics represent a critical component in modern civil engineering and environmental protection applications. These specialized textiles combine the mechanical properties of traditional geotextiles with enhanced hydraulic characteristics to provide superior filtration performance while maintaining structural integrity. The high flow rate capability of these materials makes them particularly valuable in applications where rapid water transmission is required without compromising filtration efficiency.

Geotextile filtration fabrics serve as engineered barriers that allow fluid passage while restricting soil particle movement. Their permeability is carefully balanced with filtration properties to prevent clogging while protecting underlying soils or drainage systems. The development of high flow rate geotextiles has revolutionized many engineering applications by providing solutions that combine durability, chemical resistance, and exceptional hydraulic performance.

Material Composition and Manufacturing Processes

The exceptional performance of high flow rate permeable geotextiles stems from their carefully engineered material composition and manufacturing techniques. These fabrics are typically produced from synthetic polymers, with polypropylene and polyester being the most common base materials due to their excellent chemical resistance and durability in various environmental conditions.

Manufacturers employ two primary production methods for these specialized geotextiles:

1. Nonwoven Production Techniques: Needle-punched and heat-bonded nonwoven geotextiles dominate the high flow rate market. The needle-punching process mechanically entangles fibers to create a three-dimensional structure with consistent porosity. Thermal bonding methods use heat to partially melt polymer fibers, creating stable connection points that maintain fabric integrity under stress.

2. Woven Manufacturing Methods: For applications requiring exceptional strength, woven geotextiles are produced using advanced loom technologies. These fabrics feature precisely controlled pore structures created through specific weave patterns and yarn sizes. Monofilament and slit-film woven geotextiles are particularly effective for high-flow applications.

The selection of raw materials and manufacturing processes directly influences the geotextile's physical properties, including tensile strength, puncture resistance, and most importantly, permeability characteristics. Advanced production techniques allow for precise control over pore size distribution, ensuring optimal filtration performance while maximizing flow rates.

Hydraulic Properties and Flow Rate Performance

The defining characteristic of high flow rate permeable geotextiles is their exceptional hydraulic performance. These materials are engineered to provide superior permeability while maintaining effective filtration capabilities. Several key parameters define their hydraulic behavior:

1. Permeability Coefficient: High-performance filtration geotextiles typically exhibit permeability coefficients ranging from 0.1 to 10 cm/s, significantly higher than standard geotextiles. This property is measured under various hydraulic gradients to simulate real-world conditions.

2. Transmissivity: The product of permeability and thickness, transmissivity indicates the volume of water that can flow through the geotextile per unit width under a unit hydraulic gradient. Premium high flow rate geotextiles demonstrate transmissivity values exceeding 50 × 10⁻⁴ m²/s under normal loads.

3. Gradient Ratio: This critical parameter measures the geotextile's ability to maintain flow rates under increasing hydraulic pressure. Superior products maintain gradient ratios below 3 even under significant loading conditions.

The high flow rate capability is achieved through optimized pore structures that minimize flow path tortuosity while providing adequate filtration. Advanced manufacturing techniques create consistent pore size distributions that prevent clogging while allowing rapid water passage. These fabrics demonstrate exceptional performance in both cross-plane and in-plane flow conditions, making them versatile for various applications.

Mechanical and Physical Properties

While hydraulic performance is paramount, high flow rate geotextiles must also meet rigorous mechanical requirements to withstand installation stresses and long-term service conditions. The mechanical properties of these specialized fabrics include:

1. Tensile Strength: Premium filtration geotextiles typically exhibit tensile strengths ranging from 20 to 100 kN/m in both machine and cross-machine directions. This strength ensures integrity during installation and under operational loads.

2. Puncture Resistance: Measured using CBR or cone drop tests, puncture resistance values for high-performance geotextiles often exceed 2,000 N, protecting against damage from sharp aggregates or installation stresses.

3. Elongation Characteristics: Optimal elongation properties (typically 30-80% at break) allow the geotextile to conform to subgrade irregularities without compromising hydraulic performance.

4. UV Resistance: For exposed applications, UV-stabilized formulations maintain at least 70% of original strength after extended outdoor exposure.

5. Durability: Accelerated aging tests confirm long-term performance, with high-quality geotextiles maintaining functionality for decades in typical environmental conditions.

The combination of these mechanical properties with exceptional hydraulic performance creates a robust engineering material suitable for demanding applications where both filtration and drainage are required.

Filtration Mechanisms and Soil Retention

The primary function of permeable filtration geotextiles is to provide effective soil retention while allowing unimpeded water flow. High flow rate geotextiles achieve this through sophisticated filtration mechanisms:

1. Pore Size Distribution: Carefully engineered pore structures create tortuous pathways that trap soil particles while allowing water passage. Optimal pore sizes are typically 5-10 times larger than the D85 of the protected soil.

2. Depth Filtration: Unlike surface filtration, high-performance geotextiles utilize their entire thickness for particle retention, distributing clogging potential throughout the fabric and extending service life.

3. Dynamic Clogging Resistance: Advanced geotextiles demonstrate exceptional resistance to progressive clogging, maintaining permeability even under continuous flow conditions with fine particles.

4. Blinding Prevention: Special surface treatments and fiber configurations prevent the formation of impermeable soil cakes on the geotextile surface, preserving long-term flow rates.

The filtration efficiency of these materials is typically quantified using soil retention tests (e.g., AOS or EOS values) and long-term flow rate measurements under simulated service conditions. Premium high flow rate geotextiles maintain filtration efficiency exceeding 95% while preserving flow rates significantly higher than conventional products.

Applications in Civil Engineering

The unique combination of properties in high flow rate permeable geotextiles makes them invaluable in numerous civil engineering applications:

1. Drainage Systems: These geotextiles serve as ideal filter wraps for prefabricated vertical drains, edge drains, and landfill leachate collection systems where rapid water transmission is critical.

2. Retaining Structures: In mechanically stabilized earth walls and reinforced soil slopes, high flow rate geotextiles provide both reinforcement and drainage, reducing hydrostatic pressure buildup.

3. Erosion Control: For coastal protection, riverbank stabilization, and slope protection, these geotextiles offer superior filtration while accommodating high flow velocities.

4. Pavement Systems: Beneath roads and airfield pavements, they prevent fine aggregate migration into base courses while allowing rapid water dissipation.

5. Landfill Engineering: In composite liner systems, high-performance geotextiles protect geomembranes while ensuring leachate collection efficiency.

6. Hydraulic Structures: Around culverts, bridge abutments, and stormwater management systems, these materials prevent soil piping while maintaining unimpeded water flow.

The versatility of high flow rate geotextiles continues to expand as engineers recognize their benefits in combining filtration and drainage functions in a single, cost-effective material.

Environmental Benefits and Sustainability

High flow rate permeable geotextiles contribute significantly to sustainable engineering practices through multiple mechanisms:

1. Resource Efficiency: By combining filtration and drainage functions, these geotextiles often eliminate the need for separate aggregate layers, reducing material consumption and construction footprint.

2. Long Service Life: The durability of premium geotextiles extends project lifespans, minimizing maintenance requirements and replacement cycles.

3. Water Management: Enhanced flow rates improve the performance of drainage systems, reducing water-related damage to infrastructure and preventing soil erosion.

4. Recyclability: Many high-performance geotextiles are manufactured from recyclable polymers and can be repurposed at the end of their service life.

5. Contamination Control: Effective filtration prevents soil particle migration and associated contaminant transport in sensitive environments.

Life cycle assessments demonstrate that the environmental benefits of properly specified high flow rate geotextiles often outweigh the impacts of their production, particularly when considering their role in preventing larger-scale environmental damage.

Installation Considerations and Best Practices

Proper installation is crucial for realizing the full performance potential of high flow rate permeable geotextiles. Key considerations include:

1. Subgrade Preparation: The installation surface should be smooth and free of sharp protrusions that could damage the geotextile. Proper compaction and grading ensure optimal performance.

2. Roll Placement: Geotextile rolls should be placed with care, avoiding excessive tension or folding. Overlaps typically range from 300-900 mm depending on application requirements.

3. Anchoring Methods: Temporary or permanent anchoring may be required in exposed applications to prevent displacement during backfilling or under hydraulic loading.

4. Backfilling Procedures: Initial backfill layers should consist of fine material placed carefully to avoid geotextile damage. Drop heights should be limited to prevent puncture.

5. Seaming Techniques: For critical applications, sewn or bonded seams may be required to ensure continuity of filtration and drainage functions.

6. Quality Control: Regular inspections during installation verify proper placement and identify any damage requiring repair.

Following manufacturer recommendations and industry best practices ensures that the geotextile performs as intended throughout its service life.

Testing and Quality Assurance

The performance of high flow rate permeable geotextiles is verified through comprehensive testing protocols:

1. Hydraulic Testing: ASTM D4491 (water permeability), ASTM D4716 (transmissivity), and ASTM D5101 (gradient ratio) evaluate flow characteristics under various conditions.

2. Filtration Testing: ASTM D4751 (apparent opening size) and long-term flow tests assess soil retention and clogging potential.

3. Mechanical Testing: ASTM D4632 (grab strength), D6241 (static puncture), and D4833 (CBR puncture) verify structural integrity.

4. Endurance Testing: UV resistance (ASTM D4355), chemical resistance, and abrasion tests evaluate long-term durability.

5. Conformance Testing: Manufacturing quality control ensures consistency in physical properties across production batches.

Reputable manufacturers provide comprehensive test data and quality certifications to support product performance claims. Third-party verification adds additional assurance of product quality.

Future Developments and Innovations

The field of high-performance permeable geotextiles continues to evolve with several promising developments:

1. Nanotechnology Enhancements: Incorporation of nanofibers and surface treatments may further improve filtration efficiency without compromising flow rates.

2. Smart Geotextiles: Integration of sensors could enable real-time monitoring of flow rates, clogging status, and structural integrity.

3. Biodegradable Options: Research into sustainable materials may yield high-performance geotextiles with controlled biodegradation profiles.

4. 3D Structured Fabrics: Advanced manufacturing could create geotextiles with optimized three-dimensional pore structures for specific applications.

5. Composite Materials: Hybrid systems combining geotextiles with other geosynthetics may offer enhanced multifunctionality.

These innovations promise to expand the capabilities and applications of high flow rate permeable geotextiles in coming years.

Conclusion

Permeable filtration geotextile fabrics with high flow rate capabilities represent a significant advancement in geosynthetic technology. By combining exceptional hydraulic performance with robust mechanical properties and effective filtration, these materials provide elegant solutions to complex engineering challenges. Their versatility in civil engineering, environmental protection, and infrastructure applications continues to grow as designers recognize their benefits in combining multiple functions into a single, cost-effective component.

Proper material selection, based on comprehensive testing and performance data, ensures that these geotextiles meet project-specific requirements. When installed according to best practices, high flow rate permeable geotextiles deliver long-term, reliable performance while contributing to sustainable engineering solutions. As technology advances, these materials will likely play an increasingly important role in addressing global infrastructure and environmental challenges.
