Wastewater Composite Geomembrane for Industrial Effluent Ponds

2025-10-15 07:59:27

Wastewater Composite Geomembrane for Industrial Effluent Ponds

1. Introduction

Industrial effluent ponds are critical components in wastewater management systems, designed to store and treat contaminated water from manufacturing, chemical processing, mining, and other industrial activities. To prevent environmental contamination, these ponds must be lined with impermeable barriers that resist chemical degradation, mechanical stress, and long-term exposure to harsh conditions.

Composite geomembranes have emerged as a highly effective solution for industrial effluent pond liners due to their superior impermeability, durability, and chemical resistance. This article explores the properties, benefits, installation methods, and applications of composite geomembranes in industrial wastewater containment systems.

2. What is a Composite Geomembrane?

A composite geomembrane is a multi-layered synthetic liner composed of a geomembrane (typically HDPE, LLDPE, or PVC) bonded to a geotextile or other reinforcement material. The combination of materials enhances mechanical strength, puncture resistance, and flexibility while maintaining excellent hydraulic performance.

Key Components:

- Geomembrane Layer: Provides impermeability and chemical resistance.

- Geotextile Layer: Adds tensile strength, puncture resistance, and facilitates drainage.

- Reinforcement Layer (Optional): Some composites include additional reinforcement (e.g., woven or non-woven fabrics) for enhanced durability.

3. Advantages of Composite Geomembranes for Industrial Effluent Ponds

3.1 Superior Chemical Resistance

Industrial wastewater often contains aggressive chemicals, acids, alkalis, and heavy metals. Composite geomembranes, particularly those made from high-density polyethylene (HDPE), offer excellent resistance to a wide range of chemicals, ensuring long-term containment without degradation.

3.2 High Tensile and Puncture Resistance

The geotextile backing enhances the geomembrane’s resistance to punctures from sharp objects, rocks, or settling solids in the pond. This makes them ideal for industrial applications where mechanical stress is a concern.

3.3 Excellent Impermeability

Composite geomembranes have extremely low permeability coefficients (typically <1×10⁻¹² cm/s), preventing leachate migration into the surrounding soil and groundwater.

3.4 UV and Weather Resistance

Many composite geomembranes are treated with UV stabilizers to withstand prolonged exposure to sunlight, making them suitable for open-air effluent ponds.

3.5 Flexibility and Adaptability

Unlike rigid liners, composite geomembranes conform to uneven surfaces and accommodate ground movement, reducing the risk of cracks or leaks.

3.6 Long Service Life

With proper installation and maintenance, composite geomembranes can last 30+ years, reducing the need for frequent replacements.

4. Applications in Industrial Effluent Ponds

Composite geomembranes are widely used in:

- Mining: Tailings ponds, heap leach pads, and acid mine drainage containment.

- Chemical & Petrochemical: Storage of hazardous liquid waste.

- Power Plants: Coal ash ponds and flue gas desulfurization (FGD) sludge containment.

- Textile & Dyeing Industries: Effluent ponds with high organic and chemical loads.

- Food & Beverage Processing: Wastewater lagoons with biological contaminants.

5. Installation Process

5.1 Site Preparation

- Clear and level the subgrade to remove sharp objects, rocks, and vegetation.

- Compact the soil to minimize settling and ensure a stable foundation.

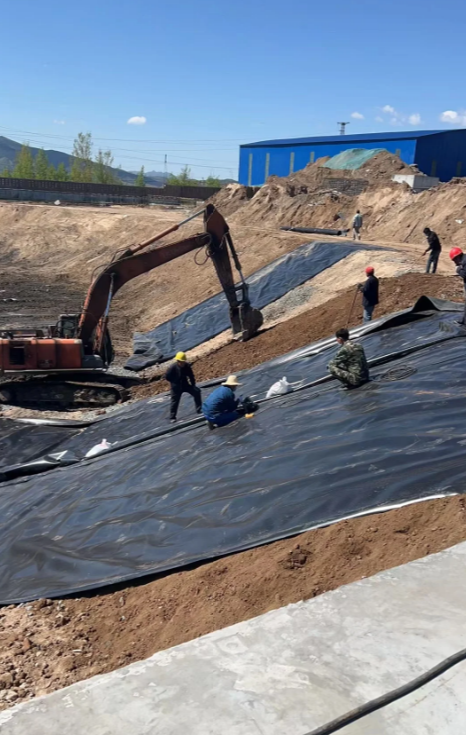

5.2 Liner Deployment

- Unroll the composite geomembrane over the prepared surface.

- Overlap adjacent panels by a minimum of 6–12 inches (15–30 cm) for proper seaming.

5.3 Seaming Techniques

- Thermal Welding: Uses heat to fuse geomembrane panels together.

- Chemical Bonding: Adhesives are applied for seams in difficult-to-weld areas.

- Extrusion Welding: Used for repairs and complex geometries.

5.4 Quality Control & Testing

- Conduct spark testing or vacuum testing to detect seam leaks.

- Perform destructive shear and peel tests on sample seams.

5.5 Protection Layer (Optional)

- A layer of sand, gravel, or geotextile may be added to shield the geomembrane from abrasion.

6. Maintenance & Inspection

- Regular inspections for tears, punctures, or chemical degradation.

- Immediate repairs using geomembrane patches if damage is detected.

- Monitoring of effluent levels to prevent overloading.

7. Environmental & Regulatory Compliance

Composite geomembranes help industries comply with environmental regulations such as:

- EPA (Environmental Protection Agency) guidelines (U.S.)

- EU Landfill Directive (1999/31/EC)

- ISO 9001 & ASTM Standards for geomembrane quality

8. Conclusion

Composite geomembranes are a reliable, cost-effective, and environmentally responsible solution for industrial effluent pond lining. Their superior chemical resistance, mechanical strength, and impermeability make them indispensable in preventing groundwater contamination and ensuring regulatory compliance.

By selecting the appropriate composite geomembrane and following best installation practices, industries can achieve long-term, leak-proof containment of hazardous wastewater, protecting both the environment and operational efficiency.

---
