Durable Composite Geomembrane Material Anti-Seepage Barrier: A Comprehensive Guide

1. Introduction

Geomembranes are synthetic materials widely used in civil engineering, environmental protection, and water resource management to prevent seepage and contamination. Among them, durable composite geomembranes have gained significant attention due to their enhanced mechanical properties, chemical resistance, and long-term stability. These materials are particularly effective as anti-seepage barriers in applications such as landfills, reservoirs, mining operations, and wastewater treatment facilities.

This article explores the composition, properties, manufacturing processes, and applications of durable composite geomembrane materials. Additionally, it discusses installation techniques, performance testing, and environmental benefits, providing a comprehensive understanding of their role in modern engineering.

---

2. Composition and Structure of Composite Geomembranes

Composite geomembranes consist of multiple layers designed to optimize strength, flexibility, and impermeability. The most common configurations include:

2.1. Polymer-Based Geomembranes

- High-Density Polyethylene (HDPE): Known for its high tensile strength, chemical resistance, and UV stability.

- Linear Low-Density Polyethylene (LLDPE): Offers greater flexibility and elongation properties.

- Polyvinyl Chloride (PVC): Flexible and easy to weld, suitable for irregular surfaces.

- Ethylene Propylene Diene Monomer (EPDM): Highly elastic and resistant to weathering.

2.2. Reinforcing Layers

- Nonwoven Geotextiles: Provide additional puncture resistance and mechanical support.

- Woven Fabrics: Enhance dimensional stability and load distribution.

- Bituminous Coatings: Improve adhesion and waterproofing in certain applications.

2.3. Composite Structures

- Two-Layer Systems: A geomembrane bonded to a geotextile for added protection.

- Three-Layer Systems: Combining multiple polymer layers for superior durability.

- Multi-Layer Laminates: Customized solutions for extreme conditions (e.g., high temperatures or aggressive chemicals).

---

3. Key Properties of Durable Composite Geomembranes

3.1. Impermeability

- Extremely low hydraulic conductivity (<1×10⁻¹² cm/s).

- Effective in preventing seepage of liquids and gases.

3.2. Mechanical Strength

- High tensile strength (20–50 MPa) and tear resistance.

- Excellent elongation properties (up to 700% for some materials).

3.3. Chemical Resistance

- Resistant to acids, alkalis, hydrocarbons, and industrial effluents.

- Suitable for hazardous waste containment.

3.4. Durability and Longevity

- UV-stabilized formulations for outdoor applications.

- Service life exceeding 30 years under proper conditions.

3.5. Flexibility and Conformability

- Adapts to uneven surfaces without cracking.

- Suitable for dynamic environments (e.g., seismic zones).

---

4. Manufacturing Processes

4.1. Extrusion

- HDPE and LLDPE geomembranes are produced through blown film extrusion or flat die extrusion.

- Ensures uniform thickness and high-quality impermeability.

4.2. Calendering

- Used for PVC and EPDM geomembranes.

- Involves pressing molten polymer between rollers to form sheets.

4.3. Lamination

- Combines geomembranes with geotextiles or other reinforcement layers.

- Techniques include thermal bonding, adhesive lamination, and needle punching.

4.4. Quality Control

- Thickness consistency (±10% tolerance).

- Testing for puncture resistance, seam strength, and chemical compatibility.

---

5. Applications of Composite Geomembranes

5.1. Landfill Liners

- Prevent leachate migration into groundwater.

- Used in municipal solid waste (MSW) and hazardous waste landfills.

5.2. Water Containment

- Reservoirs, ponds, and canals.

- Potable water storage with NSF/ANSI 61 certification.

5.3. Mining Industry

- Heap leach pads, tailings dams, and acid mine drainage control.

- Resistant to sulfuric acid and heavy metals.

5.4. Agriculture

- Lining for irrigation channels and aquaculture ponds.

- Prevents water loss and soil contamination.

5.5. Civil Engineering

- Tunnel waterproofing, road subgrade protection.

- Beneath railways and highways to prevent water infiltration.

---

6. Installation Techniques

6.1. Subgrade Preparation

- Remove sharp objects and compact soil.

- Ensure a smooth, stable base.

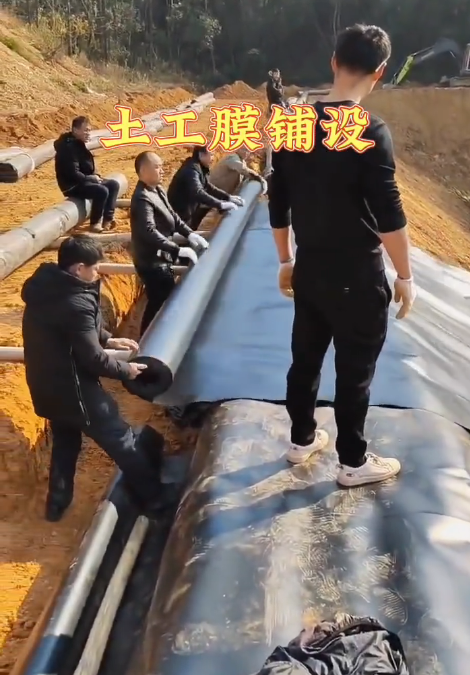

6.2. Unrolling and Positioning

- Deploy geomembrane rolls with minimal wrinkles.

- Overlap seams (typically 6–12 inches).

6.3. Seaming Methods

- Thermal Fusion (HDPE/LLDPE): Heated wedge or extrusion welding.

- Chemical Adhesives (PVC/EPDM): Solvent-based bonding.

- Pressure-Sensitive Tapes: For temporary or quick repairs.

6.4. Quality Assurance

- Destructive and non-destructive seam testing (peel tests, air pressure tests).

- Leak detection surveys (spark testing, electrical methods).

---

7. Performance Testing and Standards

7.1. ASTM Standards

- ASTM D6392: Tensile properties.

- ASTM D4833: Puncture resistance.

- ASTM D6693: UV resistance.

7.2. GRI Standards (Geosynthetic Research Institute)

- GRI GM13: HDPE geomembrane specifications.

- GRI GM17: LLDPE geomembrane guidelines.

7.3. Environmental Compliance

- EPA Subtitle D (Landfills).

- ISO 9001/14001 for quality and environmental management.

---

8. Environmental and Economic Benefits

8.1. Pollution Prevention

- Reduces groundwater contamination.

- Minimizes soil erosion.

8.2. Cost Efficiency

- Lower maintenance compared to traditional clay liners.

- Long lifespan reduces replacement costs.

8.3. Sustainability

- Recyclable materials (e.g., HDPE).

- Energy-efficient manufacturing processes.

---

9. Challenges and Future Trends

9.1. Challenges

- Seam failures due to poor installation.

- Thermal expansion/contraction in extreme climates.

9.2. Innovations

- Self-healing geomembranes with microcapsules.

- Nanocomposite-enhanced materials for higher strength.

- Smart geomembranes with embedded sensors for leak detection.

---

10. Conclusion

Durable composite geomembranes are essential for modern anti-seepage applications, offering superior performance in harsh environments. Their versatility, strength, and environmental benefits make them indispensable in landfills, water storage, mining, and civil engineering. With ongoing advancements in material science, these geomembranes will continue to evolve, providing even more reliable and sustainable solutions for global infrastructure challenges.

By understanding their composition, installation best practices, and testing standards, engineers and environmental professionals can maximize their effectiveness in preventing seepage and protecting ecosystems.

---

This comprehensive guide covers all critical aspects of durable composite geomembrane anti-seepage barriers, ensuring a thorough understanding of their role in modern engineering and environmental protection.
