HDPE Irrigation Composite Geomembrane for Canal and Ditch Lining

1. Introduction

Water conservation and efficient irrigation are critical components of modern agricultural and water management systems. One of the most effective solutions for minimizing water loss in irrigation channels is the use of high-density polyethylene (HDPE) composite geomembranes for canal and ditch lining. These geomembranes provide an impermeable barrier that prevents seepage, enhances water conveyance efficiency, and reduces maintenance costs.

HDPE geomembranes are widely recognized for their durability, chemical resistance, and flexibility, making them ideal for lining irrigation canals, reservoirs, and drainage ditches. When combined with geotextiles in a composite structure, they offer additional benefits such as improved puncture resistance and enhanced stability. This article explores the properties, installation methods, advantages, and applications of HDPE irrigation composite geomembranes in canal and ditch lining projects.

2. Properties of HDPE Composite Geomembranes

2.1 Material Composition

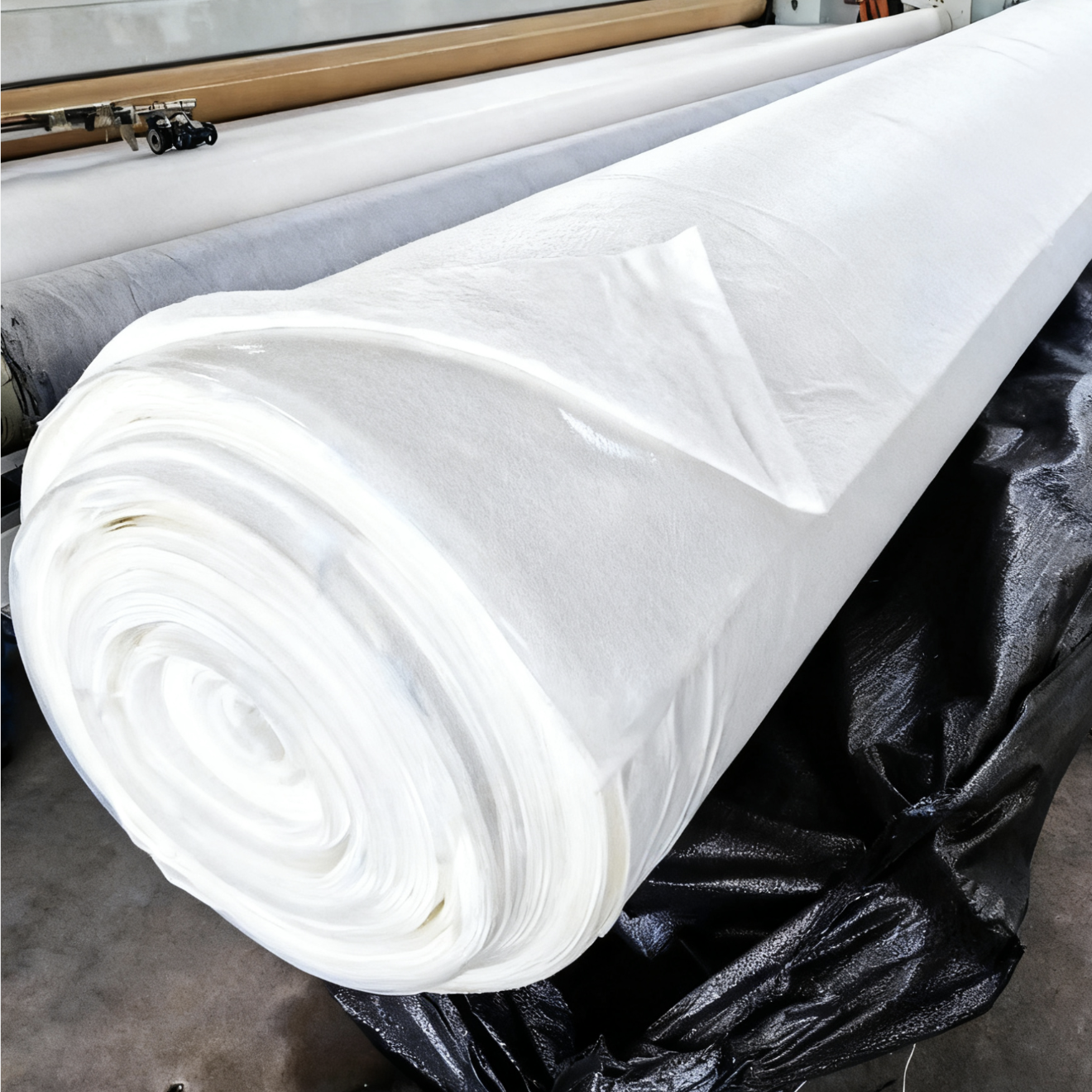

HDPE composite geomembranes consist of a high-density polyethylene geomembrane laminated to a Nonwoven Geotextile Fabric. The HDPE layer provides impermeability, while the geotextile adds mechanical strength and protection against punctures.

2.2 Key Characteristics

- High Tensile Strength: Resists deformation under stress.

- Chemical Resistance: Withstands exposure to fertilizers, pesticides, and saline water.

- UV Resistance: Long-term durability under sunlight exposure.

- Flexibility: Adapts to ground movement and settling.

- Low Permeability: Effectively prevents water seepage.

2.3 Thickness and Specifications

HDPE composite geomembranes are available in various thicknesses (typically 0.5mm to 2.5mm) to suit different project requirements. The geotextile backing usually ranges from 100g/m² to 500g/m², depending on the level of protection needed.

3. Benefits of Using HDPE Composite Geomembranes in Irrigation

3.1 Water Conservation

By preventing seepage, HDPE geomembranes significantly reduce water loss in irrigation canals, ensuring more efficient water delivery to crops.

3.2 Cost-Effectiveness

Reduced water loss translates to lower pumping and treatment costs. Additionally, the long lifespan of HDPE (up to 50 years) minimizes replacement expenses.

3.3 Erosion Control

The geomembrane protects canal beds and slopes from erosion caused by water flow, maintaining structural integrity over time.

3.4 Weed and Root Penetration Resistance

The impermeable barrier prevents weed growth and root intrusion, reducing maintenance efforts.

3.5 Environmental Protection

By minimizing water wastage and preventing soil contamination from agrochemicals, HDPE liners contribute to sustainable farming practices.

4. Installation Process

4.1 Site Preparation

- Clear the canal or ditch of debris, rocks, and vegetation.

- Compact and level the subgrade to ensure a smooth surface.

4.2 Geomembrane Deployment

- Unroll the HDPE composite geomembrane along the canal.

- Allow for slight overlap (10-15 cm) at seams for welding.

4.3 Seaming Techniques

- Thermal Welding: Uses heat to fuse overlapping geomembrane sheets.

- Extrusion Welding: Fills gaps with molten HDPE for a watertight seal.

- Chemical Bonding: Adhesives may be used in some cases.

4.4 Anchoring and Covering

- Secure the edges with trench anchors or concrete collars.

- Optionally, cover with soil or gravel for added protection.

5. Applications in Irrigation Systems

5.1 Agricultural Canals

Used in open irrigation channels to enhance water delivery efficiency.

5.2 Drainage Ditches

Prevents waterlogging by ensuring proper drainage while minimizing seepage.

5.3 Reservoir Linings

Applied in farm ponds and storage tanks to retain water without leakage.

5.4 Aquaculture Ponds

Maintains water levels and prevents contamination in fish and shrimp farming.

6. Maintenance and Longevity

6.1 Inspection and Repairs

- Regularly check for punctures or seam failures.

- Patch damaged areas using HDPE welding techniques.

6.2 Expected Lifespan

With proper installation and maintenance, HDPE composite geomembranes can last 30-50 years, making them a cost-effective long-term solution.

7. Conclusion

HDPE irrigation composite geomembranes offer a reliable and efficient solution for lining canals and ditches, ensuring water conservation, reducing operational costs, and promoting sustainable agriculture. Their superior durability, ease of installation, and resistance to environmental factors make them an ideal choice for modern irrigation systems. By adopting this technology, farmers and water management authorities can achieve significant improvements in water use efficiency and infrastructure longevity.
